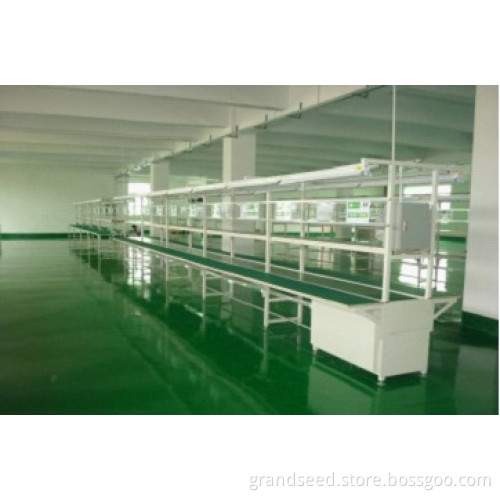

Assembly Line

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen China
Payment Type:	L/C, T/T, Western Union

Product Description

1.Stand is made of40*40*1.5mm Iron FangTong, working face height :720+/-20mm

2.Both sides of the line is made of aluminum

3..The lamp holder is made of 40mm*40mm iron material,the light adopted 40W Fluorescent lamp , the lamp adopted 25*50mm Iron flat the

4,Power system:The line is adopted GB line,trunking is adopted30*60 galvanized iron trunking ;Every station fix 220V ,three holes a bar socket.

5,.Independent workbench specification:It is made of 30*30*1.5mm Iron FangTong ,bedplate:Wide 350mm,green Anti-static rubber stuck in table-board, Half a log overlock ;

6,3.Greenδ2*400PVC convey belt is produced in Netherlands, seamless connected,adoptφ25*400 galvanized support roller transportation belt every one meter,the middle have galvanized board foil

7,The looking board is adopted 20mm*8mm AL,a A4 glue set every station

8.The lamp holder fix 30*28 the wind group of aluminum

9.H holder fix 6 points strengthen support and 6 gas-distributing pipe,which station fix a quick interface.

10.Instrument desk:Wide 400mm,table-board is adopted δ16mm board,the surface stick White fire prevention board,Half logs overlock.
