Fiber Machine&Pillow/Cushion Machine (ESF005K-1A)

Fiber Machine&Pillow/Cushion Machine (ESF005K-1A)

Get Latest Price

Payment Type:: L/C, T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen. China
Payment Type:	L/C, T/T, D/P

Product Description

Fiber opening filling and mixing line. Suitable for different kinds of short fibers(wool, cotton, polyester) carding and puff.

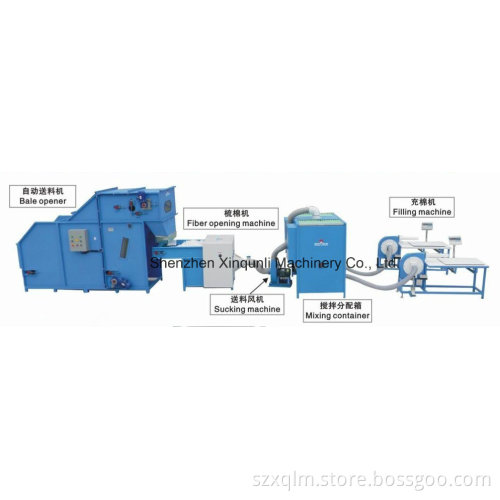

HCS polyester fiber(7D/15D, 32mm/64mm)Suitable for different kinds of short fibers(wool, cotton, polyester) carding and puff. High capacity up to 150kg/hour, different model with different capacity. (could be reach 300kg/hour)Mainly used for carding and opening short fiber(normally 7D/15D, 32mm/64mm). The machine working with one automatic raw material feeding machine sends the raw material to the fiber opener, the fiber opener opening the fiber and the sucking machine suck the product from the fiber opener and also the foam shredder and other material like feather into the mixing box, and then the blower filling the cushion and pillow. The pillow line with3capacity, 1.150kg/hour fiber opener with 2PCS fiber blower and 2.5cbm mixing box; 2.300kg/hour fiber opener with 4PCS fiber blower and 4cbm mixing box; 3.300kg/hour fiber opener with 8PCS fiber blower and 7cbm mixing box. The fiber blower can be added a table board and a scale for weighting the pillow or cushion while filling. Opening rate of the equipment can up to 98% to 100%. And metal sensor has assembled in the roller for prevent the metal and iron go into the machine and damage it.
Fiber Machine&Pillow/Cushion Machine (ESF005K-1A)

Item	Name	Model	Quantity	Remarks
1	Fiber feeder	ESF005K-1B	1	Standard It can put a half bag or whole bag fiber at one time
2	Fiber carding machine	ESF005F-1B	1	Big With metal detection and alarm With safety measure
3	Sucking machine	ESF005-4B	1	Big With low noise
4	Mix container	ESF005-1800X	1	Middle With environment design
5	Filling machine	ESF005-2E	2	With weighing
