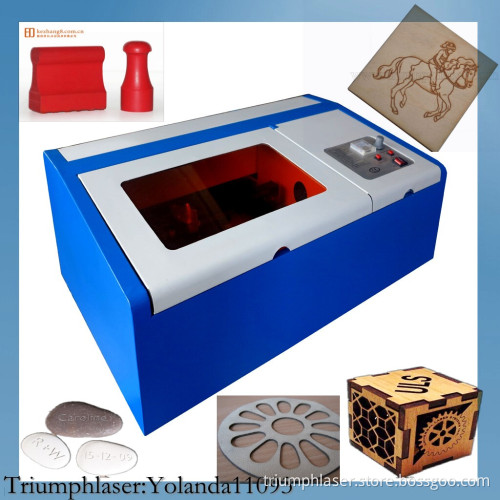

Touch Screen Laser Engraving Machine Jk-K3020 CO2 Laser Cutting Machine 40W Laser Cutting Machine with 200*300mm USB Port

Applicable Industry
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, , shoemaking, furniture, model industry, craftwork and other industries.
Technical Parameters
Communication Interface: USB
FDA Compliant: Yes
CE Certification: Yes
ISO9001 Quality Certification: Yes
Laser Type: CO2 Gas
Tube Trigger Volt: 20KV
Tube Operating Volt: 15KV
Current: 18~22mA
Engraving Area: 12x8in. (30x20cm)
Maximum Item Size to Engrave: 10.25W x 8.75L x 2.85H in.
Laser Tube (life hours): 1800-3000 Hours
Laser Power: 40W
Engraving Speed: 0-180mm/s (0-7 in. /s)
Cutting Speed: 0-18mm/s (0-0.7 in. /s)
Minimum Shaping Character: 1 X 1mm (0.04 X0.04)in.
Resolution Ratio: 0.026mm / 0.001 in. (1000dpi)
Power Supply: 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Resetting Positioning: ≤ 0.01mm (0.0004 in. )
Motor Type: Stepper Motor
Software Supported: Newly Draw 1 (included)
Power Consumption: ≤ 250W
Operating Temperature: 32-113F (0-45C)
Graphic Format Supported: PLT/DXF/BMP/JPG/GIF/PGN/TIF
Water Cooling: Water Pump include
Recommended Spare Parts/Consumables: Laser Tube, Focal lens, Reflection lens
Product Dimensions: 31.4 X 19.6 X 9.8in. (800x500x250mm)
Product Weight: 30Kg/67lb (shipping 38kg/80lb)
CO2 Laser Tube and power supply we're carrying: 20W, 40W, 60W, 80W, 100W, 130W
How to use
Please see the User Manual to see how to set up and use this machine
Also after buy item, we will send you the video show you how to use this machine step by step

Technical support
If you need any assistance on your item problem, please do not hesitate to contact us. We have a professional technical support group for all the item selling.
If you need any assistance on your item problem, please do not hesitate to contact us, our technical support will be there to assist you.
Warranty and service
1. One year equipment warranty and maintenance for lifetime.
2. Free installation and test before sending and free training for operators
3. Advice for the solutions best for customers requirements. 24 hour technical support by email or calling
Why triumph laser?
Please check feedback from our customers for our laser machines
We are focusing on manufacturing and selling.
Focusing makes professional!
Your order will be shipped within 3 business days after payment received.
For freight, please contact us for details
Securely packaged and shipped in plywood case.
Clear your requirement to suggest you right laser machine
