28W CREE XPE LED Street Light Components (SUN-LD65X135CR810)

2013 Hot Sell and New Design 28W CREE XPE Street Light Components
Model:SUN-LD65X135CR810
Size:152*96*8mm
viewing angle:70*140degree
Aluminium pcb size :130.5*74.5mm
Material:optical grade PC
Lens transmittance:91%
Work temperature:-40-120 °C
Certificates:ROHS
Match LED:Rebel, CREE XPE/XPG Leds
Application:LED Street Lamp,garden light,Tunnel lamp,etc

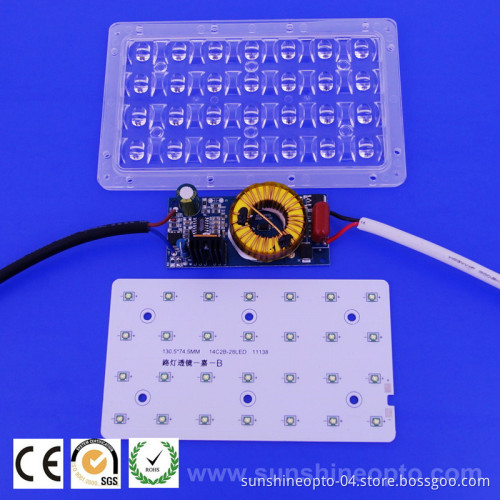

1. LED lens 4*7 28W ,application for led streetlight 28W, 56W, 112W, 168W
2. With AluminiumPCB 2.0mm thickness, good thermal conductivity, lead-free, white oil, 14 series 2 parallel or all in series
3. 1W high power LED 110-120lm 5700-6300K Natural white 350mA, 3.0-3.6V with lowest attenuation after 3000hours
4. LED Constant drivers for 28W 14 series 2 parallel, AC110V/220V, Diameter 70mm height 40mm.
We're glad to provide the full LED streetlight components with high quality. Also can make out the MCPCB Board according to customer's design.
Export market:North America,South America,Eastern Europe,Southest Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Why choosing us - SUNSHINEOPTO ?
1. About 5 years specializing in High Power LED
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
Drawing & Beam angle For led light design :
