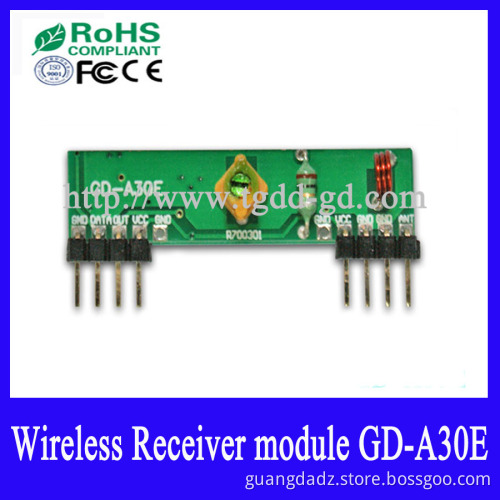

Superregenarative RF Receiver Module (GD-A30E)

Superregenarative RF Receiver Module (GD-A30E)


Receiver Module:
Low price, exact frequency, excellent consistency

We specialized with receiver module and other related products. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, only high quality and speedy delivery.

Frequency: 315/433.92MHz
Voltage: 5V
DataRate: 2.4Kbps
Sensitivity: -105dBm
Current: 2.3mA
Dimension: 43*10*8.5mm
Modulate Mode: AM

The main features:
(1)Reasonable receiver bandwidth, highly resistance to RF interference.
(2)Especially designed to minimize the unwanted RF radiation and optimize in radiating the RF radiation that is used for RF communication. Such implementation will easily be passing the strict RF requirements set by the RF organization
(3)Better shield, installation environment caused little infection, better consistency, small cubage.
(4)Applied frequency 250_450MHz and adjusted easily, short delivery time
(5)SCM directly ports, Easily realization; Better quality(Data Rate of 2.4kbps).
