Garage Door Controller, RF Wireless 2 Channel Remote Controller (GD-RF168B)

Garage Door Controller, RF Wireless 2 Channel Remote Controller (GD-RF168B)


Remote controller Descreption:

Working Voltage: DC24V
Working Current: 94mA
DC/AC Control Voltage: DC24V /AC220V
DC/AC Control Current: DC20A/AC20A

1 Terminal Block XS1: From up tp down:

HL: Light control switch, the highest control Voltage is AC220/60W;

N 220 L input: Input power, connecting 220V;

TC1: Transformer primary, connecting power transdormer's output 220V;

2 -MOTOR + terminal: Electric Machinery Output, connecting electric machinery. Pay more attention to the polarity of electric machinery. If the electric machinery operate in opposite direction, only exchanging these two terminals;
3 AC24V terminal: Transformer secondary, connecting power transdormer's output AC24V

4 +BAT- terminal: Connecting backup power, 24V storage battery, down is "+", up is "-";
5 XS2 terminal: Connceting with display screen;

6 SPEED speed check terminal: Electric Machinery speed checking signal input, used for testing travel route and motoricity. From down to up the sequency is: +5V\signal input terminal\earth terminal;

7 pH Photoelectric switch: Selection function of Photoelectric switch. When connect 1 and 2 pin, it's workable for Photoelectric switch.

8 Automatic door: Selection function of automatic closing door, when connect 1 and 2, it has automatic closing door function, if connect 2 and 3, it has no such function.

9 ANT1: Used for connecting receiving antenna.

10 RECEIVER High frequency board: Connecting high frequency receiver board;

11 W1: Adjusting the bounce of closing door. (INC) direction means enlargement, (DEC) direction means decrease;


Controller Shipment:

1. The leading time is according to your quantity.
2. Package: The goods will pack to a foam bag or a plastic bag in the carton.
3. Warranty: 1 year

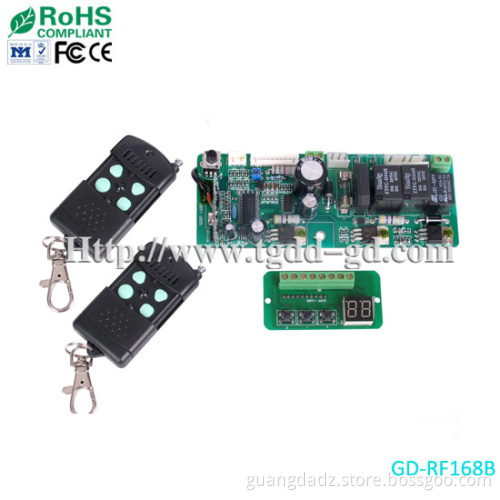

Controller pictures:
