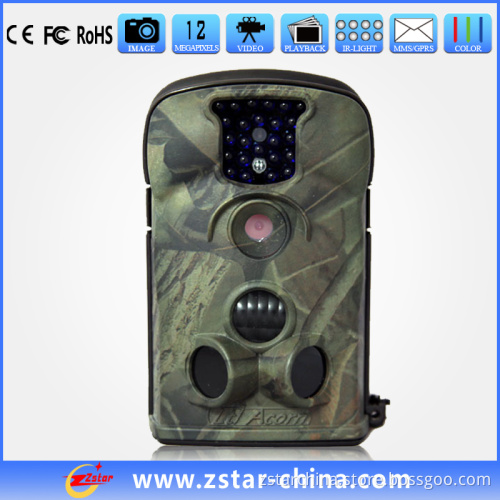

12MP MMS 940nm Hunting Camera (ZSH0303)

12MP MMS hunting camera
TECHNICAL SPECIFICATION
940nm hunting camera

Model Parameters: MMS hunting camera
Image Sensor: 5 Mega Pixels Color CMOS
Max. Pixel Size: 2560X1920
Lens: F=3.1; FOV=52° ; Auto IR-Cut
IR Flash: 65 Feet/20 Meters
LCD Screen: 48X35.69mm(2.36"); 480(RGB)*234DOT; 16.7M Color
Operation Keypad: 6 Keys
Memory: SD Card (8MB ~16GB)
Picture Size: 5MP/12MP/1.3MP =2560X1920/4000X3000/ 1280X960;
Video Size: 640X480: 20fps; 320X240: 20fps
PIR Sensitivity: AHigh/Normal/Low
PIR Sensing Distance: 65ft/20m(Below 77° F/25° C at the Normal Level)
Prep PIR Sensing Angle: Left and right light beams form an angle of 100° ; Each lens covers 10°
Main PIR Sensing Angle: 35°
Operation Mode: Day/Night
Trigger Time: 0.8 Second (When using the 2G SD card)
Trigger Interval: 0sec. - 60min; Programmable
Shooting Numbers: 1~3
Video Length: 1-60sec.; Programmable
Camera + Video: First take Picture then Video
Playback Zoom In: 1~16 Times
Time Stamp: On /Off; Include serial no., temperature and moon phase
Timer: On /Off; Time Lapse Programmable
Password: 4-Digit Numbers
Device Serial No.: 4 digits and 26 alphabets set by yourself
Periodic Shot: 1 Second ~ 24 Hours
MMS Picture Size: VGA: QVGA: OFF: Programmable
MMS Numbers: 1~99/Day: Not limit: Programmable
Mobile number: 1~3
E-mail: 0~1 Programmable extensible
Low Battery SMS Alert: Send "Battery Low" extensible
Power Supply: 4xAA; Expandable to 8xAA (With additional battery box)
External DC Power Supply: Plug Size: 4.0X1.7 6~12V(2~1A)
Stand-by Current: 0.4mA Yes Yes
Stand-by Time: 3~6 Months(4xAA~8Xaa)
Auto Power Off: Auto power off in 2 minutes while no keypad controlling
Power Consumption: 150mA (+350mA when IR LED lights up)
Low Battery Alarm: 4.2~4.3V
Interface: TV out (NTSC); USB; SD Card Slot; 6V DC External
Mounting Strap; Tripod Nail
Waterproof IP54
Operation Temperature -22~+158° F/-30 ~+70° C
Operation Humidity: 5% ~ 95%
Certificate FCC & CE & RoHS

Accessories:
Digital camera: 1
Additional battery box: 1 (With MMS module)
TV AV IN cable: 1
USB cable: 1
Strap: 1
External DC cable (optional): 1
CD: 1
Warranty Card: 1
