Induction Heating Equipment/Induction Heating/Induction Brazing Machine

Main Model:

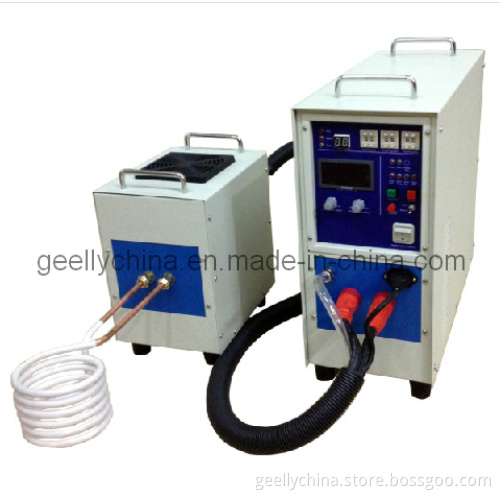

GHF-25B Split type
GHF-25AB With time and split

Main characteristics:
1, IGBTand Inverting technologies of First generation been used;
2, Simple structure and light weight;
3, Simple to operate, A few minutes is enough to learn it;
4, Simple to install, Installation can be done by unprofessional person very easily;
5, Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Typical Applications:
Brazing of the diamond blade tool
Brazing of the Machining tools
Brazing of the Micrometer
Brazing of Copper tube
Brazing of the connector
Heat treatment of small parts, quenching, annealling, and mor
Melting below 5KG for gold, sliver, copper, brass, steel and iorn

Installing Desire:
1, power supply wire: 6mm2 soft copper; Ground wire 4mm2 soft copper;
2, cooling water desire: Clean and not easy to scale, Inlet water temperature 25-36degree';
3, cooling water systerm: Running water; Circulating water from a pump to a tank; Use an industry refrigerate machine.


Boxing list of GHF-25B or 25AB Induction heating machine:
1. Induction heating machine---1PC
2. Induction coil: According to your requirements— 1-3PCS
3. Foot switch: With line of 2 meters long— 1PC
4. Three-way water tube---1SET
5. Stainless steel hose clamp: ¢ 10-20— 7PCS
6. Fuse: 1A -5PCS
7. User's manual--- 1PC
