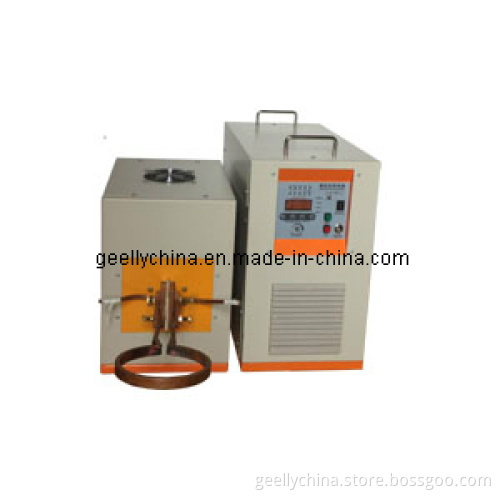

Ultrahigh Frequency Induction Heating Machine /Quenching/Brazing/Melting

Ultrahigh Frequency Induction Heating Machine /Quenching/Brazing/Melting

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Application:
· Quick quenching
· Hardening for small depth
· Brazing for tiny workpiece
· Heating tiny workpiece
· Surface harding
· Heat treatment
· Chip quenching
· Brazing for diamond saw blade
· Magnetic levitation melting
· Melting for particles metal

1. Frequency can be reached 300KHZ, control the thickness of quenching Less than 1mm.
2. Adopt IGBT power device and our company's the third generation Current-converting control technology. High reliability and low cost of Maintenance.
3.100% duty cycle, 24 hours working ability.
4. Constant current or power functions make machine works at high Efficiency.
5. Display the full output power, frequency and current.
6. Simply installation, it works with connecting water and eletricity only, no
Need expert.
7. Small and portable, save the installing space and convenient to Maintain.
8. Auto-control can adjust the power and time during the heating and Retaining processing.

Type	Output Power	Input Current	rated Power	Max. Frequency	Input Power	Cooling Water	Normal Size (cm)	Net Weight(kg)
GUF-06A-500	6.6KVA	27A	6KW	500KHz	220VAC, 50Hz, 60HZsingle Phase	>0.2 MPa, 5 L/Min, <40 ºC	58 X 26 X 50	23
GUF-06A-700	6.6KVA	27A	6KW	700KHz	220VAC, 50Hz, 60HZsingle Phase	>0.2 MPa, 5 L/Min, <40 ºC	58 X 26 X 50	23
GUF-06AB-1100	6.6KVA	27A	6KW	1.1MHz	220VAC, 50Hz, 60HZsingle Phase	>0.3 MPa, 5 L/Min, <40 ºC	Main: 52 X 24 X 50 Head: 14 X 14 X 10	17+6
GUF-10A-300	12KVA	32A	10KW	300KHz	380VAC, 480v,50 or 60Hz, Three Phase	>0.2 MPa, 6L/Min, <40 ºC	58 X 26 X 50	30
GUF-10A-500	12KVA	32A	10KW	500KHz	220VAC, 50Hz, 60HZ,single Phase	>0.2 MPa, 6 L/Min, <40 ºC	Main: 52 X 24 X 50 Head: 14 X 14 X 10	26+6
GUF-20AB-300	25KVA	30A	20KW	350KHz	380VAC, 480v,50 or 60Hz, Three Phase	>0.2 MPa, 10L/Min, <40 ºC	Main: 55 X 25 X 45 Head: 49 X 26 X 37	29+24
GUF-30AB-250	35KVA	45A	30KW	300KHz	380VAC, 480v,50 or 60Hz, Three Phase	>0.2 MPa, 10 L/Min, <40 ºC	Main: 55 X 25 X 45 Head: 49 X 26 X 37	32+25
GUF-40AB -200	45KVA	60A	40KW	250KHz	380VAC, 480v,50 or 60Hz, Three Phase	>0.2 MPa, 10 L/Min, <40 ºC	Main: 65 X 34 X 55 Head: 51 X 30 X 45	49+28
GUF-60AB -200	66KVA	90A	60KW	200KHz	380VAC, 480v,50 or 60Hz, Three Phase	>0.2 MPa, 20 L/Min, <40 ºC	Main: 65 X 34 X 55 Head: 51 X 30 X 45	52+30
