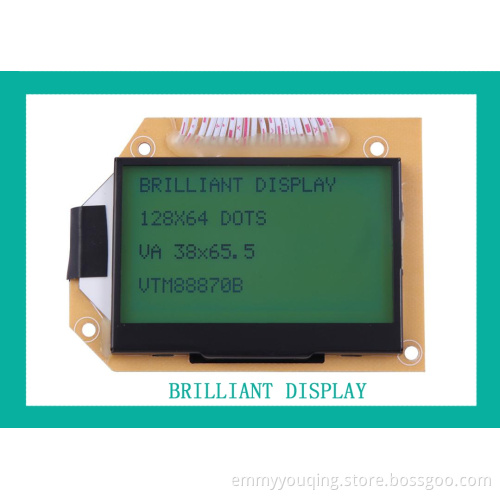

Green Backlight 128 X 64 Dots LCD Display Modules with RoHS Certification (VTM88870B)

Certificates: RoHS

1) Format: 128 x 64 Dots

2) Display type: STN(Y-G) / Transmissive 6 O'clock Positive.

3) Driving method: 1/65 duty, 1/9 bias.

4) Low power consumption.

5) Easy interfaced with 6800 parallel interface MPU

6) Power supply Voltage: +3.3V

7) Green LED backlight Voltage: 3.0V DC, 15mA

VTM88870B is a low-power consumption DOT matrix LCD module with built in controller. The controller has a Built-in DDRAM. All the display functions are controlled by instructions and the module can be easily Interfaced with 6800 parallel Interface MPU.
