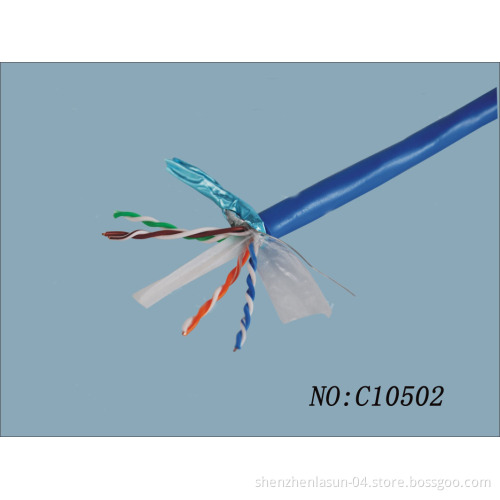

4 Pairs CAT6 SFTP Network Cables

4P SFTP Cat6 network cable, lan cable, communication cable

Description:

Cat6(SFTP):

Conductor :CU/CCC/CCA

 Conductor Dimension: 0.52~0.56 ±0.02mm

Number of Conductors: 8

Number of Twisted Pair:4P

Insulation: 1.0mmHD-PE (High density polyethylene)

Shielding: AL foil +Braiding

Sheath: PVC (Polyvinyl-Chloride) LSZH

 The external cable diameter: 6.5~6.8mm

Application: Network

Color: Available

Operating temperature: -20 ° C~75 ° C

Packaging & Delivery:

Packaging Detail: 305m (1000ft) as a roll in a pull box, 2 boxes in a carton.

Delivery Detail: 7~20 days

Introduction:

CAT6 is an Ethernet cable standard defined by the Electronic Industries Association and Telecommunications Industry Association (commonly known as EIA/TIA). CAT6 is the sixth generation of twisted pair Ethernet cabling.

CAT6 cable contains four pairs of copper wire like the previous generation CAT5. Unlike CAT5, however, CAT6 fully utilizes all four pairs. CAT6 supports Gigabit Ethernet speeds up to 1 gigabit per second (Gbps) and supports communications at more than twice the speed of CAT5e, the other popular standard for Gigabit Ethernet cabling.

Cross-shaped wire as the filler enhance article proximal crosstalk (NEXT) and impedance performance and strengthen the bandwidth and SNR surplus.
