Fume Extractor Dust Collector for welding fume condition
  • Fume Extractor Dust Collector for welding fume condition
  • Fume Extractor Dust Collector for welding fume condition
  • Fume Extractor Dust Collector for welding fume condition
Fume Extractor Dust Collector for welding fume condition
Fume Extractor Dust Collector for welding fume condition
Fume Extractor Dust Collector for welding fume condition

Fume Extractor Dust Collector for welding fume condition

Payment Type:
L/C, T/T, Paypal, Western Union
Incoterm:
FOB, EXW
Min. Order:
10 Piece/Pieces
Min. Order:
10 Piece/Pieces
Delivery Time:
7 Days
Transportation:
Ocean, Land
Port:
Shenzhen Port
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen
Productivity: 10000sets/day
Supply Ability: Strong
Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,EXW
Certificate: CE,CCC,ROHS and ISO9001:2008
Transportation: Ocean,Land
Port: Shenzhen Port
Product Description
Product Description

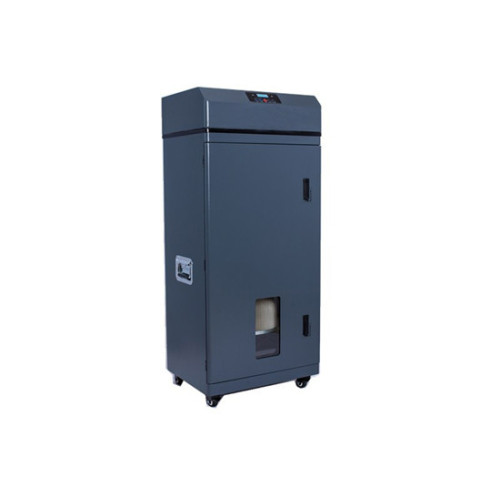

Fume Extractor Dust Collector for welding fume condition

Why do we need to pipe for outdoor discharge instead of indoor discharge? It is impossible for all industrial exhaust gas purifiers to achieve indoor emissions. The purifier uses a decomposition and transformation method to treat exhaust gas. It is not an indoor air conditioner for air conversion. It is impossible to turn exhaust gas into air for people to breathe. The purifier decomposes The small molecule components after the transformation will smell like disinfectant water. It is not recommended to discharge them in Indoors, the exhaust air can be completely diffused with a circulation of about 5 meters.

Kingsom fume purifying and filtering system is for cleaning of both particles and gases.It's designed to filter the harmful substances, such as hydrocarbon and cyanide, during the process of soldering, tin dipping in the solder pot, laser marking, and carving, printing, beauty salon etc.It catches harmful smoke with freestanding ducts and adjustable air volume to significantly improve your working environment. Our company can also develop customized purifiers according to the special requirements of customers, such as Lab Fume Extractor, Soldering Fume Extractor,Mobile Fume Extractor , Solder Paste Dispenser,High Quality Beauty Salon Air Filter,Portable Smoke Absorber etc.

Applications and Features of this Factory Directly DX-6000 Industrial Air Filter for Laser Soldering Industry

1, Multilayer filtration and rapid purification.

2, It can sabe 43% power compares with other similar products.

3, Mainly for CO2 laser engraving, laser cutting, fiber laser marking, large soldering pot, argon arc welding, ten-station manual soldering.

4, One or two air inlet interface for selection.

Detailed Images

Laser Soldering Air Filter

Laser Soldering Air Filter

Laser Soldering Air Filter





Smoke Absorber Soldering Mechine



Smoke Absorber Soldering Mechine







Smoke Absorber Soldering Mechine







Smoke Absorber Soldering Mechine

Smoke Absorber Soldering Mechine

Smoke Absorber Soldering Mechine

Specifications



Model DX6000
Air inlet interface

Φ90mm *2 or Φ90mm*1 flange

Voltage AC 110-220V
Power 700W
 Max. No-load Speed(r/min) 2*6500
Negative Pressure 3000Pa
Speed/Load 27m/s
Filtering effect 0.3μm99.97%
Noise <75dB
Flow 620m³/h
Dimensions(L*W*H) 550*415*1300mm
Weight 75Kg





Product Consumption (caculat according to 8 hours everyday)

1st Layer:

Primary fire prevention filter barrel: 185*325(mm)

Replacement period: 1-5 month

2nd - 3rd Layer:

PP Medium efficiency filter element: 450*380*100(mm)

Replacement period: 3-6 month

4th - 7th Layer:

Active carbon high efficiency filter element: 450*380*50(mm)

Replacement period: 3-6 month
