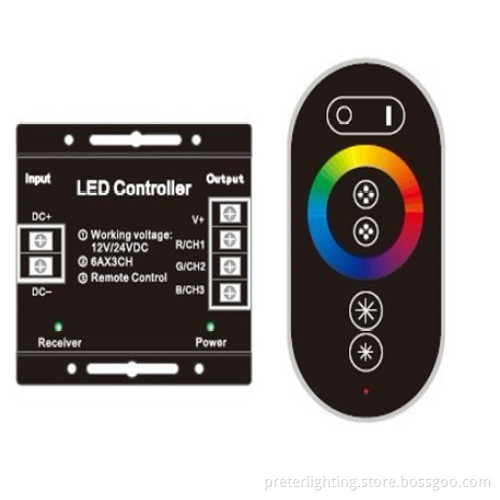

LED Controller (RGB touch controller)

Advantage:

1. Adopt touch mode, no Mechanical wear, can be touched unlimited times
2. Adopt the ocular selection of color wheel, can see what you get, ocular and convenient.
3. Can be matched by input voltage of DC 12-24V,and input polarity  protection function
4. Adopt the newest PWM control technology, good representation , no flicker
5. Adopt tube MOS,which is the high power dimmable control. Stong power
driven load with the maximum current of 18 A.Stable performance
6. Controlled by wireless remote controller with no direction. The remote distant is more than 20m
7. Low power consumption, long standby time
8. Multi-type remembering functions, including color, modes, speed, and brightness
9. Novelty and elegant appearance, especially suitable for inner house and business aero.

General Specifications:

Controller:


Input voltage: DC12V~24V
Maximum current: 6A*3CH
Output channel: 3CH
Output power:216W/432W
Control mode:RF
Output mode:common anode
Change mode:18 (7 static color modes and 11 dynamic color modes) 1 color wheel(64 static colors)
Output control mode:PWM
Grey steps:256
IP:IP20
Circuit protection:input polarity protection
Working temperature:-20ºC~60ºC
Product size: L83×W78×H33mm
Packing: L206.5×W136×H43mm
Weight: 179g


Remote Controller:


Input voltage:4.5V
Control mode: RF
Remote distant:>25m
Standby power:0.08mW
Buttons:six buttons and one color wheel
Working temperature: -20ºC~60ºC
Product size: L114×W55.5×H23mm
