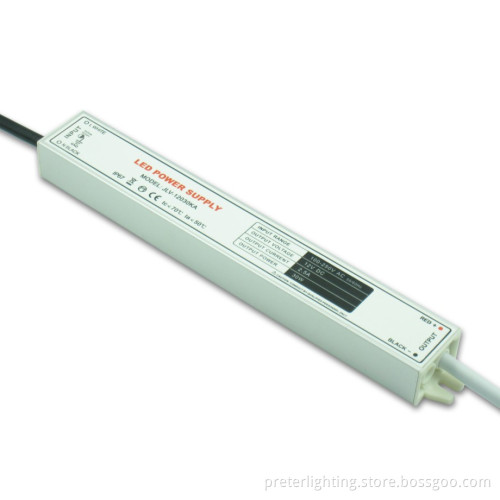

30W Waterproof LED Power Supply
- Payment Type:
- T/T, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen, China |
|---|---|
| Payment Type: | T/T, Western Union |
Product Description
Product Description
Product Description
INPUT: 100~250VAC OUTPUT: 2.5A 30W
Features:
-Real 30W output, designed for 100% full loading constantly
-Aluminium housing, 100% waterproof, IP 67
-100% full load burn-in tested
-Overload / short circuit protection
-Universal input voltage (100V~250V)
-Plug is available
-OEM is acceptable
Features:
-Real 30W output, designed for 100% full loading constantly
-Aluminium housing, 100% waterproof, IP 67
-100% full load burn-in tested
-Overload / short circuit protection
-Universal input voltage (100V~250V)
-Plug is available
-OEM is acceptable
| Model | PL-12030 | PL-24030 |
| Input voltage range | 100~250VAC | |
| Input frequency range | 47~63Hz | |
| Rated output voltage | DC12V | DC24V |
| Rated output current | 2.5A | 1.25A |
| Rated DC output power | 30W (100% full loading acceptable) | |
| Conversion efficiency | >83% | >83% |
| Ripple noise | <100mV | |
| Line regulation | <1% | |
| Input-output Withstand Voltage (Hi-pot) | 3750VAC/1min Drain Current <5mA | |
| Load regulation | <1% | |
| Waterproof rate | IP67 | |
| Working temperature | -30~+50 o C | |
| Net Weight | 0.22KG | |
| Dimension(mm) | 180*33*23mm | |
| Package | 50pcs/carton | |
| Carton size(cm) | 3.88*2.13*2.6 | |
| Carton weight | 12.5KG | |
