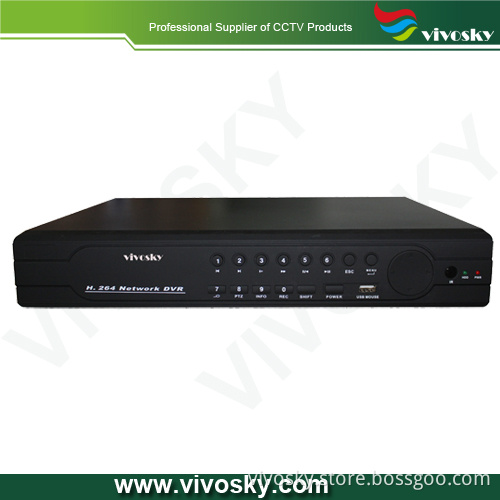

16CH 960h H. 264 DVR/NVR/HVR with 3G WiFi HDMI (VSDVR-5316HE)

Key Features:

16CH DVR/NVR/HVR Multi-mode input
16CH 960H real time recording; 8CH 960H real time playback
16CH video input, 16CH audio input, 1CH audio output, 8CH alarm input, 1CH alarm output, with RS485
Support USB 3G & USB WiFi
Support TV, VGA & HDMI simultaneously output, VGA&HDMI can be 1080P
Support 2pcs of HDD, Max. 4TB each, total 8TB

General Features:

HD DVR Three in one: combines the functions of DVR/HVR/NVR together, multi-mode input, support 16CH 960H for encode and 8CH 960H for decode, support analog + network HD video hybrid input, support full HD network video input.
Step on the Internet: Can penetrate through all kinds of network via cloud service, to do remote control easily & conveniently without any complicated setting.
Compression algorithm ideal: Compression algorithm upgraded to H.264 Main Profile, the advanced space-time filter technique makes the code stream lowered at least 30%.
Playback quality: real-time recording synchronously (16ch 960H real-time recording), real-time multi-channel playback synchronously (8CH 960H real-time playback)
Main and Sub Stream: Support main stream and extra steam encode synchronously. Main stream is for local storage to maintain the image quality, extra stream is for network real-time transmission, to easily solve the bottleneck problem of bandwidth.
Mobile monitor: Support all kinds of mobile monitor (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Display: Support TV, VGA & HDMI output synchronously, make the traditional monitor display effect upside down
Operation interface: similar WINDOWS operating style, powerful right button menu function of mouse, make it easy for using.
Network: Powerful net service(support DHCP, PPPOE, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP authority, IP search, alarm center, etc),complete enclosure(WEB,CMS,SDK),to easily achieve interconnection.
Browsers: Support multi-browser (IE, Chrome, Firefox, Safari)
Remote Access: Self enclosed with DNS function (ARSP), one-key to enable remote control, and support DNS of 3322, dyndns, oray, myq-see, etc
Device port: Device port: support 2 SATA ports,2HDD of 4T ,2 USB2.0 port for operation of mouse control, back up, burning and upgrade;
Support multi languages: Chinese, English, French, Portuguese, Russian, Italian, Spanish, Thai, Greek, Japanese, German, Polish, Finnish, Turkish, Vietnamese, Hungarian, Hebrew, Persian, Romanian, Korean, Indonesian, Swedish, Arabic
Others: Completed protective circuit, unique treble watchdog function, make device never crashed; special "black-box" technology to monitor the device process, greatly reduce the maintenance cost
