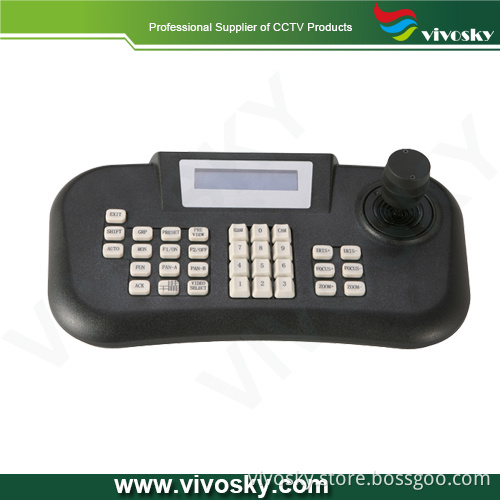

CCTV PTZ Keyboard Controller (VSK-830)

Model:
VSK-830
3D Keyboard for Speed Dome
RS485 output controlling mode
Up to 256 PTZs (Speed Domes) or 256 DVR can be controlled with a single keyboard
Baud Rate: 2400/4800/9600/19200BPS
Protocol: Pelco-D & Pelco-P
Dimension: 336*181*59mm, Weight: 2.37KG

Features:
Photoelectric insulated RS485 controlling mode is adopted for the output of the keyboard, which provides strong anti-jamming and long-distance transmission.
The keyboard can control up to 512 Speed Domes or Decoders etc terminal devices. The address of the Speed Domes or Decoders can be set within the range of: 1~255.
Variable-speed operation can be applied to the built-in Pan/tilt of the Speed Dome through the keyboard.
Lens zooming, focus and iris can be manually controlled through the keyboard.
The high speed dome camera can be manually / automatically controlled with the keyboard.
Joint-control can be realized by using the DVR keyboard together with one or multiple DVR mainframes or embedded hard disk VCRs.
The keyboard has menu displaying LCD, 3D controlling joystick, as well as DVR or embedded hard disk VCR panel controlling functions.
Preset positions can be set up and previewed in Speed Dome through the keyboard.
Tour groups can be set up and run through the keyboard.
Left and right limiting positions can be set up and Left & right scan can be run through the keyboard.
Home position can be set up, activated and closed through the keyboard.
The keyboard has password locking function.
