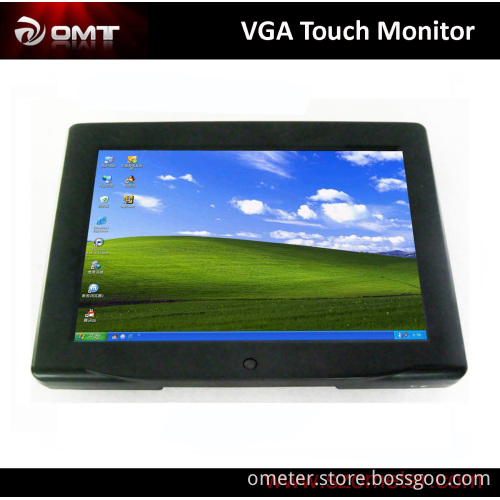

8inch TFT LED VGA Touch Monitor

8" TFT Touch Monitor
Case Colour: Black/silver
Display Type: 8" 4: 3 Ratio
Active Display Area: 162(W) X 121.5(H) mm
Native Resolution: 800 X 600 @ 60Hz
Sychronization Range: 30-80 kHz horizontal, 55-75 Hz Vertical
Pixel Pitch: 0.0675(W) X 0.2025(H) mm
Response Time Rise + Fall (Typically): 8ms
On Screen Display (OSD): Remote OSD
Colours: 16.7 million
Brightness: 350 CD/m2
Contrast Ratio Typically: 400: 1
Viewing Angle Horizontal (left/right): 170° (85° /85° )
(From Centre, CR>=5) Vertical (up/down): 160° (70° /90° )
LED Backlight life Hrs: 50, 000
Input Video Format: Analog RGB, CVBS NTSC/PAL (AUTO)
Touch Pen Hitting Life: >= 1milions times
Power Supply: External: 85-265VAC, 50-60 Hz
Power Consumption: <10 W Typ
Temperature Range: Operating: 0-50, Storage: -20-80
Standard VGA (15 pin D-SUB RGB)
Four wires resistive USB touch-screen for PC display
Serial COM(RS232) Touch is optional
Two RCA video input
Built-in speaker amplifier
Operating All Systems: DOS/Windows 9X ME 2K XP 7 Vista NT CE / LINUX / Mac, etc
