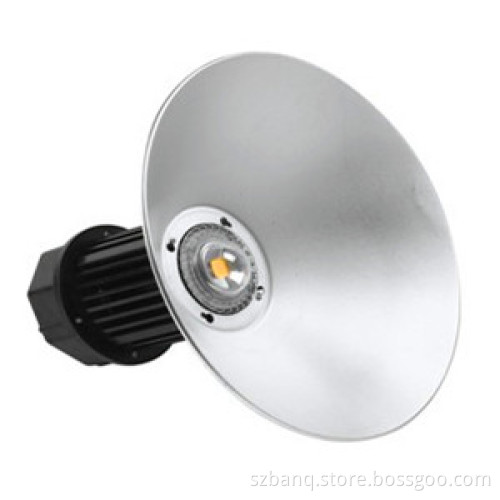

100W High Bay (CE, RoHS, SAA)

Specifications

Led industrial light 1. Beam Angle: 90 degree 2. Aluminum alloy stamping 3. Certificte: CE, ROHS 4. Life Span: 50000h



High efficiency and power factor LED driver.
Wide radiation angle, huge lighting area.
Start without delay and flicker free.
Ideal heat dissipation design.
No UV & IR, No Blinking and No Mercury & Lead free...
Energy saving system, saving 50% energy than the conventional Metal halide lamp, Sodium Light or HPS light
Input VoltageAC85V~265V
Freqency Range50Hz~60Hz
Total Harmonic Distortion≤ 9%
Power Factor>0.98
Power Efficiency>87%
Working VoltageDC30~36V
LED Quantity1 PCS
LED Consumption82W
System Consumption106W
LED Luminous Efficiency60~100LM/W
LED Initial FluxWW7100Lm
PW7500Lm
CW7200Lm
Lamp's Efficiency>85%
Average
LlluminanceHeight: 6M53.8Lux
Height: 8M24.6Lux
Height: 10M13.6Lux
Llluminance
AreaHeight: 6Mφ 10M
Height: 8Mφ 16M
Height: 10Mφ 21M
Llluminance Uniformity>0.4
Color TemperatureWW2700K~3900K
PW3900K~6000K
CW6000K~7000K
Color Rendering IndexWWRa>68
PW, CWRa>75
Light DistributionSymmetric expression
Light DesignLED+reflector twice luminous intensity distribution
Junction Temperatrue≤ 80
Working Temperature-40° C~+55° C
Storage Temperature-25° C~+65° C
IP GradeIP65
Working Life-span50000H
Power line0.75mm2 three-core wire
Connect wire BrownL
BlueN
Yellow/GreenG
NW5.5kg
GW6.4kg
Package Size240*240*350
The color of the lamp shellBlack/Silver
CertificateCE
