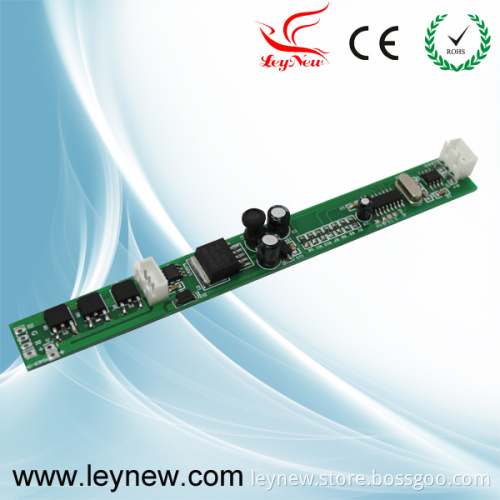

Small Size, LED Strip DMX Module (LN-CON-DMXBAR-3CH-LV)

Summarization
Strip DMX module adopts the advanced micro control unit, it receives widespread international way that transformed the DMX-512 standard digital control signals into PWM controller signals for driving LED; You could connect DMX module with DMX digital console to achieve dimming or various changes in procedures.
Technical Parameters
Working temperature: -20-60
Supply voltage: DC12-24V
Output: 3 channels
Grayscale: 256
The number of occupied channel: 3
Connecting mode: Common anode
External dimension: L140 W15 H12 mm
Net weight: 12g
Gross weight: 18.6g
Static power consumption: <1W
Output current: <4A (each channel)
Output power: 12V: <144W, 24V: <288W
