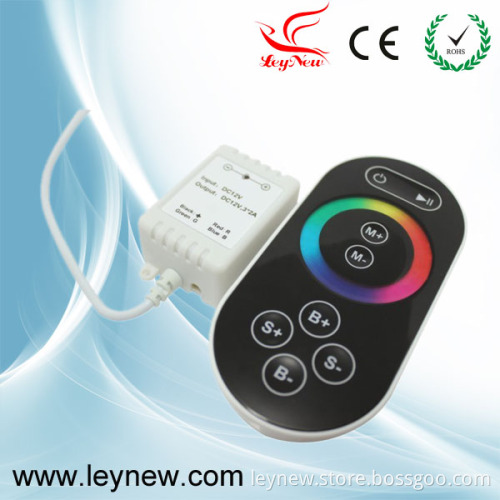

Simple 8key Touch LED Controller for RGB Strip

Summarization
This product is a novel LED controller developed by our company which can realize multistage touch dimmer. Adopting advanced touch design, through the panel controller combined with touch remote way, realize flexible control. Touch remote has good performance, beautiful, fashion, easy to use. This product suit for every occasions, such as: Point light source, flexible strip, wall washer lamp, glass curtain wall light and such lighting controller.
Main feature
1) Touch-button, ultrathin, light quality, protable
2) Touch-key count up to 64, up to 64 kinds of mode function, small volume, more key function.
3) Easy to use, have color pulley touch screen, all sorts of design and color mode at a glance, can a single point also can continuous touch to realize color mode select, users can speedily choose the needed color, and the static and dynamic mode can change freely.
4) Auto dormancy function, the remote control is without buttons state more than 20 seconds, remote will automatic enter the standby state, realize save electricity, extending battery life.
Technical Parameters
Controller
Working temperature: -20-60
Supply voltage: DC5V, 12V-24V optional (specify the required voltage on orders)
Output: 3 channels
Connection mode: Common anode
Static power consumption: <1W
Output current: <2A( each channel )
Output power: 5V: <30W, 12V: <72W, 24V: <144W
Controller dimension: L63 W35 H22 mm
Packing size: L105 W65 H40 mm
Net weight: 50g
Gross weight: 70g
Touch remote
Working temperature: -20-60
Power supply mode: AAA battery
Supply voltage: 1.5V*3
Standby power consumption: 0.015mW
Standby current: 3uA
Working current: 300uA
Emission current: 12mA
Remote distance: 25m
Standby time: 6 months
