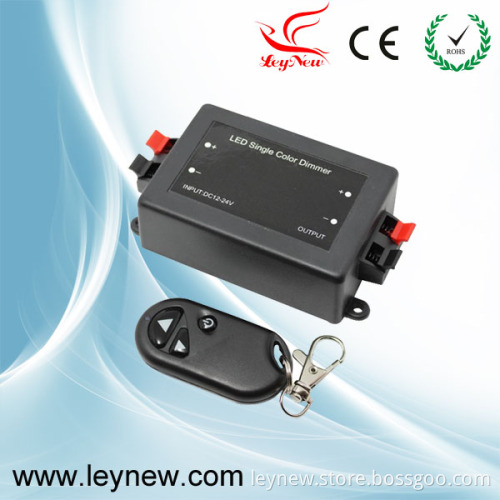

Easy to Use with CE RoHS Dimming LED Light Dimmer

Technical parameters
Working temperature: -20-60
Supply voltage: DC5V, 12V, 18V, 24V < optional > ( supply voltage should be marked on order )
Output: 1 channel
Net weight: 100g
Gross weight: 130g
External dimension: L110 * W56 * H34 mm
Packing size: L122* W85 *H42 mm
Rated load current: <8A
Output power: 5V<40W, 12V<96W, 24V<192W
Summarization
RF dimmer is a controller that can adjust brightness infinitely, its control mode is wireless control, you could adjust light to the appropriate lighting brightness in accordance with your actual need.
Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
2. Adopt wireless control,
Key is for increasing brightness,
