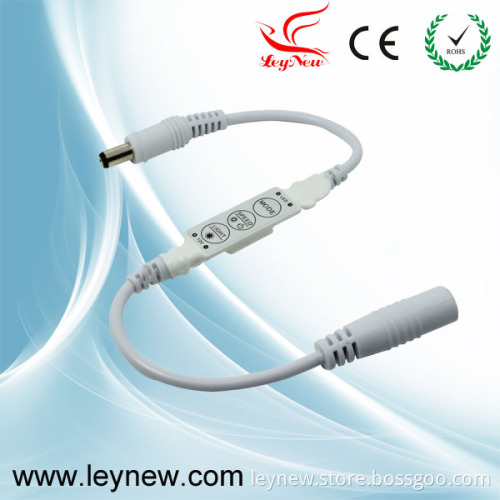

Mini Three Button Dimmer

I. Summarization
This controller adopts the advanced micro control unit. It is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on. It has many advantages such as low price, easy connection, simplicity to use and others, etc. According to the customers' needs, it can realize ten levels brightness adjustment, eight monochromatic dynamic models, and also can realize quick flash, breathing, fadein dimming, strobe, flicker and other kinds of models, with ten levels speed adjustment, large speed span. It is easy to take, simple to use, etc.
II. Technical parameters
Working temperature: -20-60
Supply voltage: DC5-24V
Output: 1 channel
Connection mode: Common anode
Controller dimension: L35.0 × W15.0 × H4.5mm
Packing size: L185 x W50 x H13.5mm
Net weight: 15.8g
Gross weight: 20.1g
Static power: <0.5W
Output current: <4A
Output power: 5V<20W, 12V < 48W, 24V < 96W
