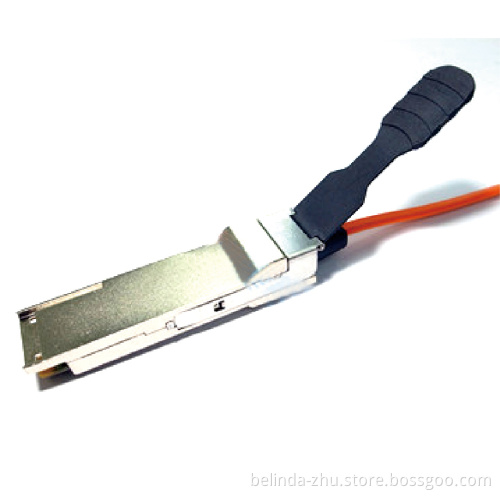

QSFP+AOC(Active Optical Cables), QDR, 40Gb/s
QSFP+ AOC cables are high performance active optical cables with maximum aggregate bandwidth of 40Gbps. We provide benifits designed for infiniBand QSFP QDR and 40Gbps Ethernet applications including performance at distances up to 100+ meters(OM3).
DATACOM & TELECOM
Switches / Routers / HBAs
Enterprise Networking
Server & Storage Devices
Data Center Networking
ATM / SDH / SONET
High Performance Computing
Fiber Channel
InfiniBand DDR / QDR
10Gbs / 40Gbs Ethernet
PCI Express 4X / SAS 4X
FEATURES & BENEFITS
Light weight (10m cable weighs-180g)
Flexible fiber cable with 35mm bend radius and cable diameter is 3.3mm
Improved signal integrity relative to CX4 connector (SFF-8470, SDR, DDR)
0.9W typical per plugs (1.8W end to end)
Single 3.3V power supply
QSFP+MSA & SFF-8436 compliance
Operating temperature at -25centigrade-+75centigrade
PHYSICAL
Backshell: Zinc Die-Casting with Nickel plating
PCB Paddle: FR4 with Gold Plating, 38POS
PCB Contact Plating: 100 u" min. Nickel under plate over all, 15 u" min. Gold over nickel at contact area by electron plating, 100u" min tin over nickel at soldering area
Raw Cable: High speed cable 100ohm twin-ax 8 pairs with fully braided EMI shielded cover with PVC or low smoke and zero-halogen jacket
Pull-Tab: Nylon (Polyamide) with blue or black color
Pull-Tab cover: Stainless steel
EMI Girdle: Stainless steel
Rivet: Aluminum
ENVIRONMENTAL
Operating Temperature: -40º C to +85 º C
Relative Humidity: 45% to 85%
Barometric Pressure: 86 to 106 Kpa
Thermal Shock: 100 cycles, -55º C to +85 º C (EIA 364-32D)
Temperature Life: 500 hours at 70 º C (EIA 364-17B)
Mixed Flowing Gas: 14 days (EIA 364-65A)
ESD Rating: 15KV air discharges and 8KV direct contact discharges
MECHANICAL
Durability: 250 cycles (EIA-364-23C)
Mating Force: 40N max. (EIA-364-13D)
Unmating Force: 30N max. (EIA-364-13D)
Cable Flex: 180° Flex: 50 cycles (EIA 361-41)
Latch Strength: 170N min. At axial load
Cable Axial Strain Relief: 90N min.
Bending Radius: 10X of cable OD
ELECTRICAL
Supply Voltage: 3.13~5.25VDC (TYP. 3.3VDC)
Withstanding Voltage: 300VDC
Power Current Rating: 0.5 amps maximum per contact
Insulation Resistance: 1000Mohm min. (EIA-364-21C)
SIGNAL INTEGRITY PERFORMANCE
Differential Impedance: 100ohm +/-10 at 70ps rise time by 20~80% (EIA-364-108)
Within Pair SKEW: < 10ps / meter (EIA-364-103)
Pair-to-Pair SKEW: < 50ps / meter (EIA-364-103)
Applications
Switches / Routers / Networking, ATM / SONET / SDH, Fiber Channel / InfiniBand, Base Station / BBU /RRU
Standard Requirements
IEEE802.3ba, 40Gbase-CR4, QSFP-MSA, SFF-8436, SFF-8685, SFF-8635
QSFP+ AOC cables are high performance active optical cables with maximum aggregate bandwidth of 40Gbps. We provide benifits designed for infiniBand QSFP QDR and 40Gbps Ethernet applications including performance at distances up to 100+ meters(OM3).
DATACOM & TELECOM
Switches / Routers / HBAs
Enterprise Networking
Server & Storage Devices
Data Center Networking
ATM / SDH / SONET
High Performance Computing
Fiber Channel
InfiniBand DDR / QDR
10Gbs / 40Gbs Ethernet
PCI Express 4X / SAS 4X
FEATURES & BENEFITS
Light weight (10m cable weighs-180g)
Flexible fiber cable with 35mm bend radius and cable diameter is 3.3mm
Improved signal integrity relative to CX4 connector (SFF-8470, SDR, DDR)
0.9W typical per plugs (1.8W end to end)
Single 3.3V power supply
QSFP+MSA & SFF-8436 compliance
Operating temperature at -25centigrade-+75centigrade
PHYSICAL
Backshell: Zinc Die-Casting with Nickel plating
PCB Paddle: FR4 with Gold Plating, 38POS
PCB Contact Plating: 100 u" min. Nickel under plate over all, 15 u" min. Gold over nickel at contact area by electron plating, 100u" min tin over nickel at soldering area
Raw Cable: High speed cable 100ohm twin-ax 8 pairs with fully braided EMI shielded cover with PVC or low smoke and zero-halogen jacket
Pull-Tab: Nylon (Polyamide) with blue or black color
Pull-Tab cover: Stainless steel
EMI Girdle: Stainless steel
Rivet: Aluminum
ENVIRONMENTAL
Operating Temperature: -40º C to +85 º C
Relative Humidity: 45% to 85%
Barometric Pressure: 86 to 106 Kpa
Thermal Shock: 100 cycles, -55º C to +85 º C (EIA 364-32D)
Temperature Life: 500 hours at 70 º C (EIA 364-17B)
Mixed Flowing Gas: 14 days (EIA 364-65A)
ESD Rating: 15KV air discharges and 8KV direct contact discharges
MECHANICAL
Durability: 250 cycles (EIA-364-23C)
Mating Force: 40N max. (EIA-364-13D)
Unmating Force: 30N max. (EIA-364-13D)
Cable Flex: 180° Flex: 50 cycles (EIA 361-41)
Latch Strength: 170N min. At axial load
Cable Axial Strain Relief: 90N min.
Bending Radius: 10X of cable OD
ELECTRICAL
Supply Voltage: 3.13~5.25VDC (TYP. 3.3VDC)
Withstanding Voltage: 300VDC
Power Current Rating: 0.5 amps maximum per contact
Insulation Resistance: 1000Mohm min. (EIA-364-21C)
SIGNAL INTEGRITY PERFORMANCE
Differential Impedance: 100ohm +/-10 at 70ps rise time by 20~80% (EIA-364-108)
Within Pair SKEW: < 10ps / meter (EIA-364-103)
Pair-to-Pair SKEW: < 50ps / meter (EIA-364-103)
Applications
Switches / Routers / Networking, ATM / SONET / SDH, Fiber Channel / InfiniBand, Base Station / BBU /RRU
Standard Requirements
IEEE802.3ba, 40Gbase-CR4, QSFP-MSA, SFF-8436, SFF-8685, SFF-8635
