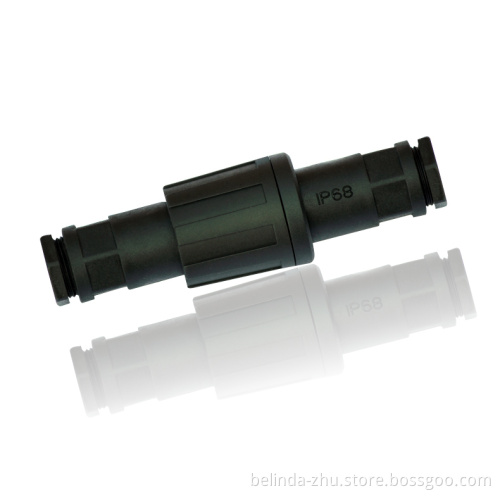

9000 Plastic Waterproof Connector

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

Operating Parameters
Current Rating: 20A
Voltage Rating: 220V AC
Times of plug/unplug: Above 3000 times
Cable OD Rating: OD≤ 14.0mm
Material - ROHS Environmental protection
Material
Cable Type: PVC, PU, Rubber, Silicon
Shell material: Flame-resistant /anti-UV
Nylon(PA66) RL94V-0
Compression connection type Pin hole:
Brass; Crown Spring: Beryllium bronze
Seal-O-Ring: Silicon
Porperty
Contact resistance: ≤ 10mΩ
Dielectric resistance: 500 MΩ At DC500V
Withstand voltage: 3KV Under normal
Temperature
Operating temperature: -45º C~ +105º C
Humidity: 90% + 40 C
Waterproof Rating: IP68
