HD Integrated Camera Module

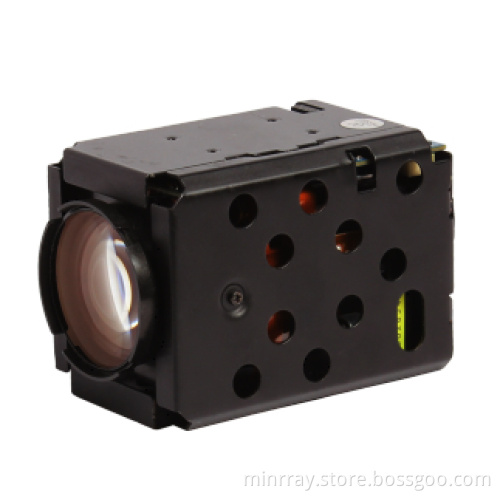

Product Name: VHD180 HD18x Integrated Camera Module
Model No: VHD180
Product Features
HD18x Integrated Camera Module VHD180 Series
High Performance\Full HD\Day/Night
Main Features
L 5 Megapixels HD CMOS sensor, providing video image with super high quality
The VHD-180 use 1/2.5 inch HD COMS achieving 1920 x 1080 super high quality video image. With frame rate up to 60/50 frame/sec, providing super smooth video and making full high definition come true.
L Low noise and High SNR
The VHD-180 applies American new generation low noise sensor, with the co-strength of 2D and 3D noise reduction algorithm, decreasing image noise effectively and also improving SNR.
L Lifelike video image
The VHD-180 adopts the latest CMOS sensor which is outstanding by its WDR function, with the co-effect of unique Iridix exposure dynamic control algorithm, delivering intricately detailed and vivid images, especially under circumstance with strong light and shade contrast.
L Multi-Format Video Outputs including Full HD
The VHD-180 provides full high definition at up to 1080p60, becoming the first camera in China which support full HD. The camera also support 1080P60/50/30/25\1080I60/50\720P60/50 format HD video for meeting different needs of application.
L 18x optical zoom
The VHD-180 has a maximum zoom ratio of 14x optical zoom. High performance lens with fast and stable auto focus capability. F=4.7~84.6mm
L ICR Day/Night auto-switching
The VHD-180 adopts the new generation lens which can switch the image mode from color to day/night automatically according to the daylight condition, which guarantees the whole day/night service of the camera.
L OSD menu
Built-in OSD menu, users can control the setting of camera easily via OSD menu.
Order Module
VHD180S (1080P60)
VHD180M (1080P30)
Application
Video conferencing system
Telemedicine systems
Tele-education systems
Tele-surveillance
Technical Parameters
Module
VHD180S
VHD180M
Sensor
1/2.5 inch HD CMOS
Effective pixel
2.07 million (1920× 1080)
Scan
1: 1 progressive scanning
Output pixels/frame
1920(H)X1080(V)60/30/50/25fps
1280(H)× 720(V)60 /50 fps
1920(H)X1080(V)30/25fps
1280(H)× 720(V)30 /25fps
Zoom
18x(f=4.7~84.6mm )
Focus
4.7~84.6mm
Angle of view
55.2° (wide angle)-3.2° (farness)
Iris range
F1.6- F2.8
Focus
Auto/Manual
Day/Night
Auto/day/night
WDR
Yes
Image flip
Yes
Mirror image
Yes
Image freezing
Yes
Shutter Speed
Auto/Manual(1/4-1/10000S)
Iris
Auto/Manual
BLC
Yes
White balance
Auto/Manual
Horizontal pixel
600TVL(1280× 720 pixels)/800TVL(1280× 960 pixels)/1000TVL(1920× 1080 pixels)
Minimum Lux
IR-CUT(open 1/30s): 1.8Lx IR-CUT(close 1/4s): 0.02Lx Condition: F1.6(w), 50IRE
Synchronizer
Inter-synchronize
Power supply
9-12V DC
Voltage
260mA (MAX: 600mA)
Power
5.4W
Video output (digital output)
YUV422,
Digital clock frame
148.5MHz(1080P/60)
74.25MHz (1080P/30)
Ports
2(36pin FFC/40Pin)
Dimension (W x H x D)
50mm× 60mm× 89.5mm
Weight
250g
