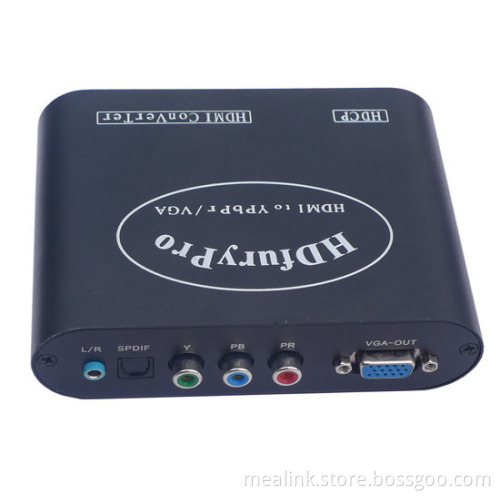

Hdfury PRO HDMI+HDMI to VGA/YPbPr Converter (1080P)

I Intruduction
This 2 way HDMI to YPbPr + VGA+audio switch converter is designed for TV or projector with component video or PC with VGA video inputs. This unit has two independent HDMI inputs to avoid the frequent swaps of video sources. It adopts the newest highly integrated video processing ICs to convert high-definition HDMI A/V signal to high-resolution VGA signal or high-definition YPbPr component video signal and provides the 2CH/5.1CH stereo and sound capabilities for your display devices (TVs, projectors, monitors) and A/V receiver. Pure signal processing through hardware, a great compact gadget of high quality; No need to install drivers, portable, flexible, plug and play.

II Features
1. The newest High-definition HDMI digital processing chip, converts HDMI high-definition signal to high-resolution VGA signal or high-definition YPbPr component video signal.
2. Support 5.1CH high-definition digital audio signal at SPDIF output; And analog 2CH stereo at the 3.5mm L/R audio output.
3. Two HDMI video input (HDMI1 or HDMI2), multi-channel analog video output (VGA or YPbPr), multi-channel audio output (5.1CH with SPDIF optical and 2CH stereo)

II Specification
1. Inputs: HDMI1, HDMI2
2. Video Output: YPbPr Component Video or VGA
3. Audio Output: 2CH L/R Stereo and 5.1CH SPDIF Optical Audio
4. Input mode:
HDMI input mode: 480I, 480P, 576I, 576P, 720P, 1080I, 1080P
5. Output mode:
A. YPbPr output mode: 480I, 480P, 576I, 576P, 720P, 1080I and 1080P
B. VGA output mode: 480I, 480P, 576I, 576P, 720P, 1080I and 1080P
5. Audio Interface: SPDIF Digital Audio Output and Stereo L/R Audio Output
SPDIF supports audio receiver or amplifier, is capable of 5.1 audio output
LED: --------------------------------- Power indicator
DC/5V in: --------------------------- Power input for adapter DC/5V
HDMI1 / HDMI2: ------------------- HDMI input from video sources
VGA-OUT: ------------- VGA video output
Y-Pb-Pr: --------------- Component video output
VGA - YPbPr: -------- VGA or YPbPr output select switch on input panel
H1 - H2: --------------- HDMI1 or HDMI2 input select switch on input panel
2CH / 5.1CH: --------- Audio format selection switch between 2CH and 5.1CH
L / R: ------------------- Stereo audio output interface on output panel
SPDIF: ---------------- Digital audio output on output panel
