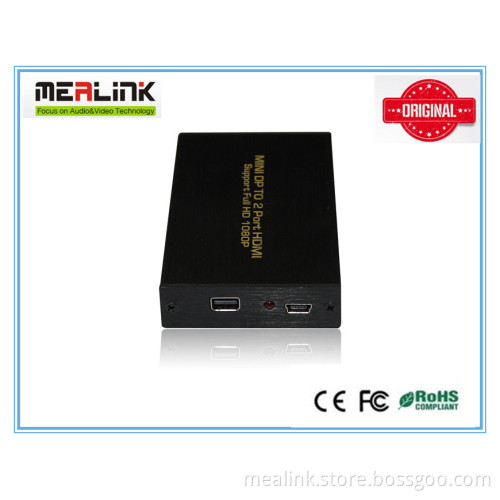

Mini Dp to 2 Port HDMI Converter Support 3D

MINI DP TO 2 Port HDM Converter
Product introduction
This device MINI DP to 2 port HDMI converter is to turn the DP signal into two routes of HDMI Signal output. The converter allows one DP devices to be split easily to two HDMI compatible monitors or projectors.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES

One MINI DP signal input converter and split to two HDMI signal output.
Support 3D
Support deep color 24bit, 30bit, 36bit
Support 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support signal retiming
Support output up to 20metres AWG26 HDMI standard cable length
No loss of quality
Installs in minutes
Need DC5V/1A power supply


Operating and Connecting:

< >To use the mini DP cable to connect the mini DP source with mini DP input port of the converter. To use the HDMI cable to connect the HDMI output port of the converter with the Display or TV HDMI Input port. To connect the 5V/1A adaptor with the converter. SPECIFICATIONS:
Input and output resolution...24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i
Support video color format...24bit, 30bit, 36bit deep color
Support audio format...DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Max bandwidth...225MHz
Max baud rate...6.75Gbps
Input/Output TMDS signal...0.5~1.5Volts p-p(TTL)
Input DDC signal...3.3Volts p-p (TTL)
Output DDC signal...5Volts p-p (TTL)
Output cable distance...≤ 15m AWG26 HDMI standard cable
Max working current...600mA
Power adapter format...Input: ...AC (50HZ, 60HZ): 100V-240V; Output: DC 5V/1A
Operating Temperature range...(0 to +40centigrade)
Operating Humidity range...5 to 90%RH (No Condensation)
Dimension (L x W x H)...68x51.6x16 (mm)
