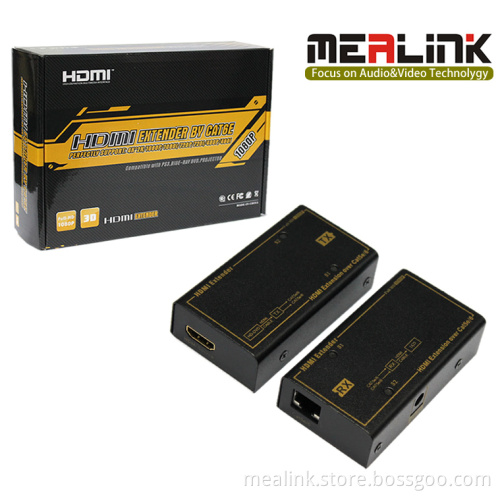

60m Single Cat6e HDMI Extender (Support 3D)

60m HDMI Extender Over Single Cat5e/6 Cable Support 3D.

This Single HDMICAT60RX and TX Extender use single CAT6 or cat6e(recommended) cables up to 60 metres instead of HDMI cable to transmit high definition signal, for cutting down cost. Long distance transmission of high definition is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


Image or specification may be changed without prior notice.


FEATURES
Support HDMI 1.2 protocol
Support full 3D
HDCP 1.2 protocol compliant
Support video input: 24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Signal transmission: Single cat-5e or cat-6(recommended) cables up to 60 metres instead Of HDMI calbes are connected between TX and RX Extender.
Support video output: 24/50/60fs/1080P/1080I/720p/576p/576I/480p/480I
Support CEC
Audio format support: DTS-HD/-trueHD/LPCM7.1/DTS/-AC3/DSD
LED indication: When power is supplied or device is working, LED relative to is light.
Support up to 20metres AWG26 cable length between extender and source & sink device
No loss of quality
Installs in minutes
Need DC5V/2A power supply
