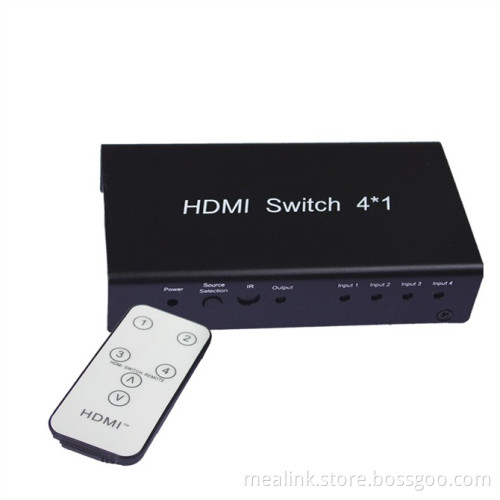

4 to 1 HDMI Switcher/4 Port HDMI Switch (YL0401)

The 4X1 HDMI Switcher allows access to multiple HDMI sources, using a single HDMI sink. The Switcher allows four HDMI devices to be switched easily through one HDMI compatible monitor or projector. The Switcher can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

FEATURES
Four HDMI 1.3 input signals switched to a single HDMI 1.3 sink devices
HDCP 1.2 protocol compliant
Support deep color 30bit, 36bit
Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Digital audio format, as DTS-HD/-trueHD/LPCM7.1/DTS/-AC3/DSD
Support signal retiming
Support input up to 15metres AWG26 HDMI 1.3 standard cable length,
Output up to 25metres AWG26 cable length
Inputs can be switched with the IR remote control, also can be controlled by button.
It can smartly jump over those input sources which are not connected.
With the smart function of memory, it can come back to the latest status when restarted
Or reconnected.
No loss of quality
Installs in minutes
Need DC5V/1A power supply

CONNECTING AND OPERATING
1. Connect one cable from each HDMI source devices into HDMI Switcher inputs.
2. Connect one cable from display (monitor or projector) into the HDMI Switcher outputs.
3. Connect 5V power supply to the HDMI 4X1 Switcher.
4. Use the RMT-IR remote control port to remotely switch or use button to switch between sources.
