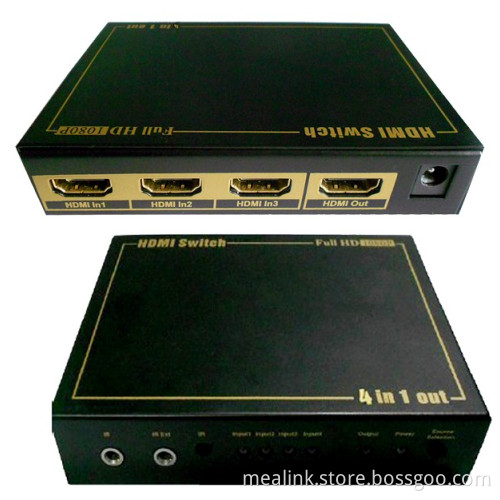

4X1 HDMI Switcher with IR

4X1 HDMI Switcher with IR, Support 3D, HDCP 1.2
Basic functions:
Support IR control system
4 different HDMI input and 1 HDMI display sink
Switching control via remote or Manual

Specification:
HDMI version--------------------------------------------HDMI with 3D
HDCP version---------------------------------------------HDCP 1.2
Support HDMI resolution------1080P/1080I/720P/576P/576I/480P/480I
Support video color bit----------------------deep color 24bit /36bit
Support audio format------------------------LPCM/AC3/DTS7.1/DSD
Input Video signal ------------------------------------------5.0Volts P-P
Output cable distance---------------------------------≤ 15m 24AWG cable
Input Cable distance-------------------------------------------≤ 20m 24AWG Cable
Data transfer speed-----------------------------------------10.2Gbps
Operating Humidity range-------------------------5 to 90% RH(No Condensation)
Operating Temperature range------------------ -15 to +55(5 to 131° F)
Power adapter format-------------------------Input AC (50Hz. 60Hz) 100-240 V
Power Supply-----------------------------------------------------------DC 5V

Package Included:

When first unpacking your HDMI switch please check to see if the following items are included:
One HDMI switch
Power supply
User manual
The remote control

Operation:
Connect the signal source (such as HD-DVD, PS3, STB) with HDMI input interfaces.
Connect the display devices (such as HD-LCD, HD-DLP) with HDMI output interfaces.
This device is powered by an external power supply ( included ).
