1080P 3X1 HDMI Switcher with Short HDMI Cable

Get Latest Price

Payment Type:: T/T, Western Union, Paypal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	T/T, Western Union, Paypal

Product Description

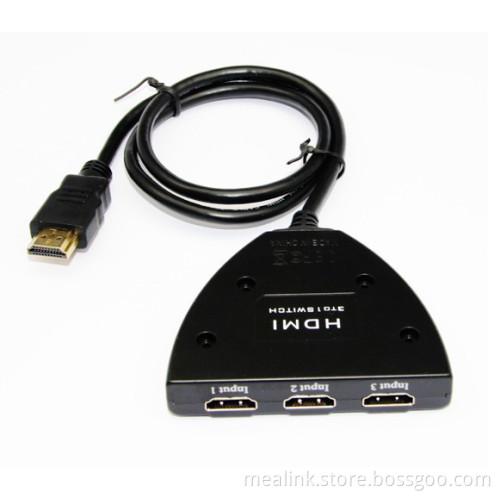

MINI 3x1 HDMI Switcher

INTRODUCTION
The 3x1 HDMI Switch routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the three sources to display unit.Three inputs accommodatethe simultaneous connection of up to five high definition video sources, such as satellite systems and HD DVD players. The output sends the high definition audio/video signals to a high definition display.This kind of the HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.

Main Specifications:

HDMI Switch	3*1
Support audio format	DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD;
Support video color format	24bit/deep color 30bit,36bit;
HDMI Resolution	1080p24ts/1080p/1080i/720p/576p/480p/480i
Support digital audio format	DTS-HD/Dolby-trueHD/LPCM7.1/Dolby-AC3/DTS/DSD
Manual or Remote	Select one of 3 different HDMI signal input sorce, output to the sink.
Inputs	can be switched with the IR remote control,also can be controlled by our buttons.
Input/output TMDS signal	0.5--1.5Volts P-P(TTL);
Operating Temperature range	(-15 to +55 degree);
Operating Humidity range	5 to 90% RH (No Condensation)

FEATURES
* Support HDMI 1.3b
* Full HD 1080P
* Support 12-bit Deep Color
* High Performance up to 2.5Gbps
* Switch easily between any Three HDMI sources
* Extends the range of HDMI compliant device by equalizing and re-clocking the HDMI signal
* Maintains high resolution video - beautiful, sharp HDTV resolutions up to
1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
* Supports 25Meters HDMI Cable on both ends of the Switcher
* with IR receiver & remote control
* HDMI pass-through
* HDCP pass-through
* No power needed
