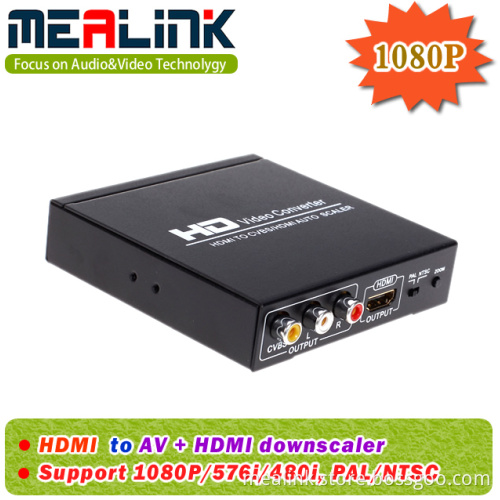

HDMI to AV+HDMI Converter, CE/FCC/RoHS, OEM Acceptable

I. Introduction
HDMI to CVBS signal converter which will convert HDM video signal or audio signal to AV (CVBS) composite video signal and the FL / FR stereo audio signal, and HDMI signal; While support DVI system sideline signal. Help users convert the high quality of the HDMI video signal into normal CVBS signal (standard-definition 480i, 576i, ). So that can play on TV, VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.

II. Features
. Hardware conversion, plug and play without any software driver
. Compatible HDMI1.3
. Support NTSC and PAL two standard TV formats
. One HDMI input, one AV output, one stereo output
Inputs: HDMI x 1;
Outputs: AV x 1; L / R x 1; HDMI x 1
. HDMI input: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
Compatible with DVI mode 800x600, 1024x768, 1280x720, 1280x102, 1920x1080/@60hz
Support the HDCP protocol, support for HDMI 1.3
CVBS output: 480I, 576I
Audio output: L/R channels
HDMI OUTPUT: BYPASS HDMI
480P, 576P, 720P, 1080I, 1080P @ 60Hz
Compatible with DVI mode 800x600, 1024x768, 1280x720, 1280x102, 1920x1080/@60hz
Dimensions: 100mm(W)x115mm(D)x 25mm(H)
