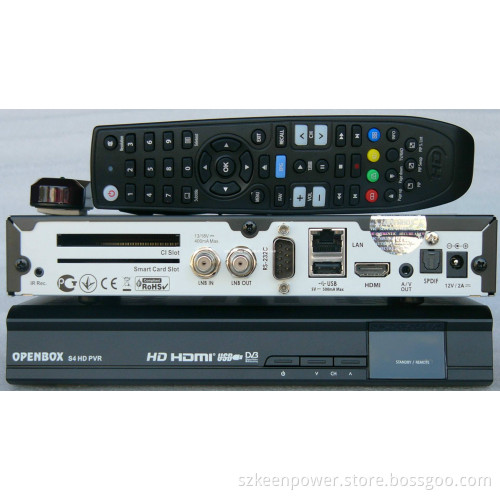

Openbox S4 HD PVR Digital Satellite Receiver Sb198

Openbox S4 HD PVR Digital Satellite Receiver SB198

OPENBOX S4 Satellite Receiver
Specification:
1, Full HD Satellite PVR Receiver
2, H. 264 / MPEG4 - HD, SD / DVB-S2 Compliant
3, Powerful Compatibility through Embedded Linux OS
4, Convenient MP3 music player on YouTube
5, Web-browser - to view the Internet sites on your TV
6, Time Shifting, Recording & Playback with External Storage Devices ( USB 2.0 )
7, Simultaneously Recording of 3 Services and Allows Watching 2 others (PIP)
8, USB 2.0 Host ports (MP3 Player & JPEG Viewer)
9, Powerful Extended EPG with Event Recording
10, Picture-in-Picture (PIP) Supported
11, HDMI Video & Audio Output (576I, 576p, 720p, 1080I, 1080P)
12, Ethernet Port Supported
13, 1 Smart Card Reader and 1 CI
14, Software & Service Database Upgrade via USB & RS-232C
Input Connector
Loop through out
Frequency Range
Input Impedance
Signal Level
LNB Power
22kHz Tone
DISEqC Control
Demodulation
Input Symbol Rate
FEC Decoder
F-type, IEC 169-24, Female
950MHz ~ 2150MHz
75? , unbalanced
-65 to -25dBm
13/18VDC, max. 400mA
(22± 2)kHz, (0.6± 0.2)V
V1.0/1.2/USALS Compatible
QPSK / 8PSK
2 ~ 67.5 Ms/s(QPSK of DVB-S)
2 ~ 52.5 Ms/s(8PSK of DVB-S2)
1/2, 2/3, 3/4, 5/6 and 7/8 with
Constraint Length K=7(DVB-S)
3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 (DVB-S2)
1. MAIN FEATURES
1, Full HD Satellite PVR Receiver
2, H. 264 / MPEG4 - HD, SD / DVB-S2 Compliant
3, Powerful Compatibility through Embedded Linux OS
4, Convenient MP3 music player on YouTube
5, Web-browser - to view the Internet sites on your TV
6, Time Shifting, Recording & Playback with External Storage Devices ( USB 2.0 )
7, Simultaneously Recording of 3 Services and Allows Watching 2 others (PIP)
8, USB 2.0 Host ports (MP3 Player & JPEG Viewer)
9, Powerful Extended EPG with Event Recording
10, Picture-in-Picture (PIP) Supported
11, HDMI Video & Audio Output (576I, 576p, 720p, 1080I, 1080P)
12, Ethernet Port Supported
13, 1 Smart Card Reader and 1 CI
14, Software & Service Database Upgrade via USB & RS-232C

Input Connector
Loop through out
Frequency Range
Input Impedance
Signal Level
LNB Power
22kHz Tone
DISEqC Control
Demodulation
Input Symbol Rate
FEC Decoder
F-type, IEC 169-24, Female
F-type, IEC 169-24, Female
950MHz ~ 2150MHz
75? , unbalanced
-65 to -25dBm
13/18VDC, max. 400mA
(22± 2)kHz, (0.6± 0.2)V
V1.0/1.2/USALS Compatible
QPSK / 8PSK
2 ~ 67.5 Ms/s(QPSK of DVB-S)
2 ~ 52.5 Ms/s(8PSK of DVB-S2)
1/2, 2/3, 3/4, 5/6 and 7/8 with
Constraint Length K=7(DVB-S)
3/5, 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 (DVB-S2)
Transport Stream
Profile Level
Input Rate
Video Formats
Video Resolution
Audio Decoding
Audio Mode
Sampling Rate
H. 264(MPEG-4 part 10, MPEG-4/AVC and H26L)
MPEG-II ISO/IEC 13818-2/11172-2
MPEG-4/AVC MP@L4, MPEG-II MP@HL
Max. 80Mbit/s
4: 3 Letter Box, 4: 3 PanScan, 16: 9
720 X 576I, 720 X 576p, 720 X 480I, 720 X 480p
1280 X 720p, 1920 X 1080I, 1920 X 1080P(HDMI Only)
Digital, MPEG-1 Layer 1, 2 and 3
Streo/Joint stereo/Mono, AC-3
32kHz, 44.1kHz and 48kHz(According to input)
Main Processor
Memory
STi chipset
Flash-ROM: 32 Mbytes
SDRAM: 256 MBytes
EEPROM: 256 byte
Tuner & Channel Decoder (Satellite)
MPEG Transport Stream A/V Decoding
2, Main System
RCA
HDMI
OPTIC
RS-232C
USB
ETHERNET
IR EXTENSION
CVBS Video Output, Audio L, R Output (Option)
Video & Audio Output
AC-3 Digital (SPDIF)
9 pin D-SUB (Male) type, Transfer rate 115Kbps
USB 2.0 Host Support
