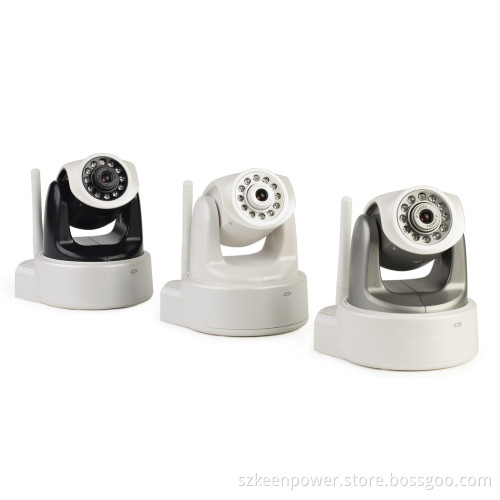

Security Camera /H. 264 & Mjpeg PTZ IP Video CCTV Camera /Support WiFi Mobile Phone View (1MCAM)

Description
It adopts H. 264&mjpeg compression format, support 2 way audio. WiFi. Built-in Pan/Tilt and IR cut. Mobile phone view. Support UPNP, DDNS. WPS (Wi-Fi Protected Setup). Motion detection. Email FTP alarm, MSN review. With multi-IP management smart software.

Feature:

Remote Pan/Tilt rotate Horizontal: 270, Vertical: 120.
Support1 way H. 264 video stream and 1 way MJPEG video stream simultaneously, suitable for Local, Internet and Cross-platform view. Video frame rate: 30fps, image very clear and move smoothly. Adopt mega pixels CMOS sensor, support 720p (1280*720)/640*360/320*240 video resolution.
Built-in microphone.
It adopts the TCP/IP network protocols and built-in web server. Users can browse video through IE and other other browsers. Data is tansferred through one port; It is easy for user to do the network setting.
Infrared LED for night vision covers 8m area, to realize 24 hours monitoring
Support IR and color filter change automatically, no any color difference.
Support maxim 32G SD card for video and picture storage
Supporting PBC MODE: Push button configuration (PBC) an actual push button on the hardware or through a simulated push button in the software
Camera is connected to the internet, this URL can be used to visit the device.
1, 4, 9, 16, 25, 36, 64, 100 multiple video display optional in one screen, support record, alarm, remote playback on records and other management functions.
Manugacture provides free multi-camera management software. Support multi-view. Long time recording. Video replay etc.

Specification:

Image Capture Sensor Mega pixels CMOS sensor
Minimum illumination IR lights on, 0 Lux
Lens f=3.6mm, Fixed Iris F=3.6mm
IR CUT Support IR and color filter change automatically
Pan/Tilt Pan Coverage 270
Tilt Coverage 120
Assistant Lighting Control Auto/manual control
Lighting 10PCS 850nm Infrared lights, 5m distant
Video and Audio First Stream Resolution H. 264 720P(1280*720)/640*480/320*240
H. 264 720P(1280*720)/640*480/320*240
Second Stream Resolution Mjpeg 640*480

Compression H. 264 MJPEG
Frame rate 30fps
First Stream Bit rate 512Kbps ~ 4.096Mbps
Second Stream Bit rate 4Mbps-8 Mbps
Image Rotation Flip / Mirror
Supporting WPS PBC MODE: Push button configuration (PBC) an actual push button on the hardware or through a simulated push button in the software
Network Basic Protocol TCP/IP HTTP SMTP RTSP FTP DHCP DDNS UPNP NTP
Other Protocol 802.11b/g/n
Other Features Mobile Phone View Support
Video control support
Dual way audio support
Memory Snap or video into SD card
Browser SD card View or download from network
Motion Detection yes( 4 zone detection )
Triggered Actions
Email/FTP/SD storage/external alarm/send message to alarm server
User Setting Three levels
Date/ Time Setting Support
Upgrade Upgrade from network
DDNS A free DDNS provided by manufacturer
Hardware Interface Ethernet 10Base T/100base-TX
Memory SD Slot
Audio Out audio output interface x 1
Physical Index Weight 300g
Power DC 5V
Power consumption 6W
Operating -20~ 50

Use environment Indoor use
Power DC5V 2A
Temperature -10~50 C
Humidity 0~90
Size 20*12*16CM

Weight G. W. 450g(Note: For real products )
Attachment Power adapter, CD, bracket

Packing List:
1 X IP camera
1 X Power Adaptor
1 X bracket
1 X CD
