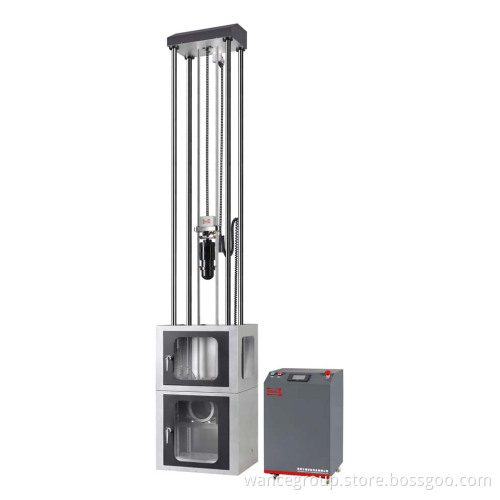

Drop Weight Impact Testing Machine for Plastic Pipe

Model: DIT302A

Maximum impact energy: 300J
Functions:
This series Drop Weight Impact Testing Machine is designed to test impact resistance performance for thermoplastic pipes

Features:
1. Automatic locking for second impact

2. Automatically locate the striking zero point

3. Automatic lift the tup to the preset height

4. Crosshead movement to adjust the test space

5. PLCS controls for drop height location with high stability and high accuracy

6. Smooth column for guiding to ensure precise striking point with small resistance

7. Safety enclosure to protect from broken specimens

Standards:
GB/T 14152, GB/T 10002.1, GB/T 6112, ISO 3127, ISO 4422.1, ASTM D2444

Parameters
1. Maximum impact energy: 300J

2. Maximum impact height: 2m

3. Maximum pipe diameter

DIT302A-A: Φ 400 mm

DIT302A-B: Φ 630 mm

DIT302A-C: Φ 1200 mm

DIT302A-D: Φ 1600 mm

4. Tup nose radius: D25(SR50)\D90(SR50)

5. Dimension (length X width X height):

DIT302A-A 600mm X 500mm X 3200mm

DIT302A-B 850mm X 500mm X 3500mm

DIT302A-C 1700mm X 1000mm X 4400mm

DIT302A-D 2000mm X 1000mm X 5220mm
