5gallon Bottle Washing Filling Capping Machine 200b/H

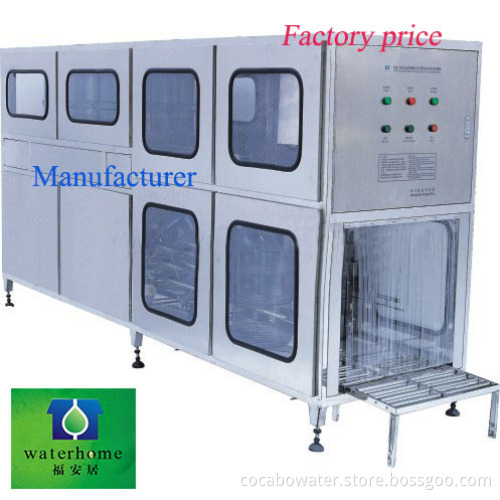

XG-100/J (200buckets/H) PLC-Controlled Microcomputer Automatic Bottle Washer & Filler manufactured by our company, which concentrates the functions of bottle washing, filling and capping with 5 and 3 gallons on one set of machine and manufactured with the standard of America Drinking Water Industry Association & with reference to overseas newest type of equipment.

The operation procedures of Microcomputer Auto Bottle Washer and Filler from the bottle entering------pure water interior and exterior washing------ disinfectant solution washing water washing inside and outside------- pure water washing inside and outside bottle -------dropping down bottle seated on the bottle pushing supporter pure water filling (cap-aligning) cap pressing output of filled bottle, which is controlled by PLC with the functions of automatic finish, precise orientation, little manpower and low working intensity.

The complete set of equipment is manufactured by high-strength stainless steel materials and stainless plate steel with precise argon arc, little distortion and fair welding veins. The conveying component structures with stainless steel to assure normal running of the device under various conditions. Nonmetallic components are manufactured elaborately by wearable materials, such as nontoxic PP plastic, etc. In order to make the performance of the device more stable, most of conveying electromotor and booster pump are those products for exportation and electrical components manufactured elaborately by imported series of products or name brand series of products at home.

Main technical parameters of the 200BPH 3/5gallon bottled water device:
Production capacity 200 Buckets/hour
Bottle's capacity 18.9 Liters (equal to 5 gallons)
11.3 Liters (equal to 3 gallons)
Bottle's specification (mm) Φ270×490×Φ56
Φ230×420×Φ56
Cap's specification (mm) Φ58×40 (strip:L18mm,W:7.5mm)
Rated input power 2.8KW
Electromotor power Conveying electromotor 0.37KW
Disinfectant washing pump 0.37KW×2
Pure water washing pump 0.37KW
Pure water washing/filling pump 0.55KW×2
Cap-aligning electromotor 0.06KW
Power supply AC 380V±5% 50Hz
Rated current 8A
Net weight 380kg
Outer size 3220×980×1600(mm)
Requirement of air compressor 0.1 M3 0.17M3/Min 0.8MPa/Cm2
Requirement of water supply 4.8M3/H
