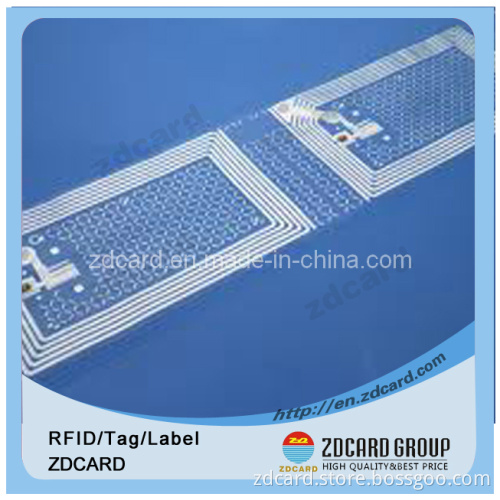

ISO 18000-6c UHF EPC Class1 Gen2 RFID Label

ISO 18000-6C&EPC Class1 Gen2 RFID Card

Description:
A version of the popular ISO format identity card equipped with a UHF RFID transponder conforming to the EPC Global Class 1 Gen 2 specifications

Standard: ISO 18000-6C, EPC Class1 Gen2 or ISO/IEC 18000-6B
UHF chip: NXP-XM/XL/HSL; Alien-H2/H3; Impinj & M2/M3, etc
Frequency: 860 ~ 960MHz
Storage capacity: 256 bytes
Reading Distance: 10~16M stable reading(depending on the reader design)
Write Endurance(cycles): >100000
Data Retention: 10 years
Dimensions: 85.6 X 54X 0.8mm (± 0.5mm)
Weight: 5.8 ± 0.5g
Material: PVC
Operating Temperature: -10° C to +50° C
Storage Temperature: -10° C to +50° C
Applications: Vehicle management, personnel management, etc.
