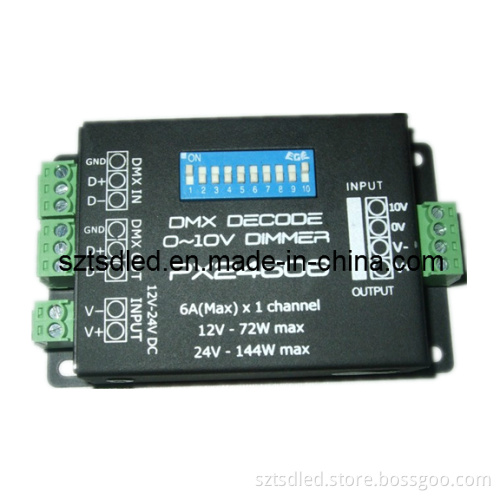

High Power DMX512 Decoder&Driver (TC-PX24606)

SUMMARIZE of DMX512 Decoder
Thank you for using PX series DMX512 decoder. With advanced micro-computer controltechnology, PX series convert the widely used DMX512/1990 signal to analog signal. Support DMX512 dimming function (prior) and 0~10V analog signal dimmer.

FEATHERS of LED Decoder
1. Meets DMX512/1990
2.1 output CH., can drive 6A
3. With control system, can express perfect effect
4. Can set the DMX512 addess freely
5. Modularizing, can be combined with LED module neatly

TECH. CHARACTERISTICS
Decode CH.: 1
Input Signal: DMX-512/1990 digital signal
Output Signal: 0~24V, can drive 6A
Power Supply: DC12~24V
Power Dis.: <1W
Max. Power Output: 72W(12V)/144W(24V)
Operating Temp.: -20 centigrade~70 centigrade
Size: L86(mm)*W51(mm)*H17.8(mm)
Weight: 110g

Connecting of DMX512 Signal
1. The wire for DMX512 signal is STP, the DMX512 signal has positive and negative signal.
Pay attention to the polarity while connecting. Connect the positive signal, negative
Signal and GND to the corresponding connector of PX24606.

Connection with DMX512 Dimmer
1. DMX512 signal will be choosen prior to 0~10V analoge signal. When both DMX512 and 0~10V
Analog signal arrives in PX24606, the controller will choose DMX512 signal automatically.
