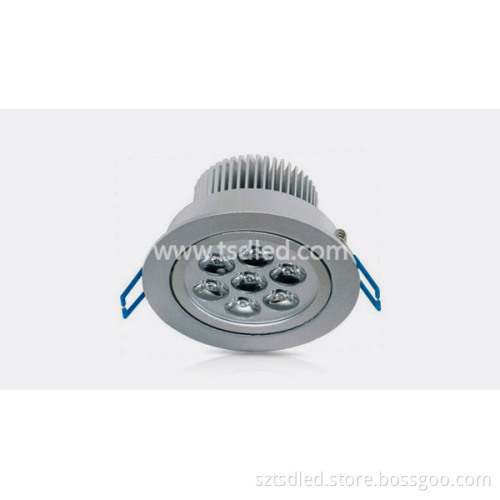

7x1W LED Downlight (TD-CLW7-01)

LED Down Light, LED Downlighting
1)Great for under-cabinet and other low voltage applications
2)To be used with constant current LED driver
3)High output white or warm white LED
4)50.000 hours life time (17years at 8hours a day )
5)Reverse polarity protected
6)Constant current regulation
7)Proprietary design for excellent thermal management and lumen maintenance
8)3years warranty

Specification of LED Ceiling light
1)350 m A constant current operation
2)Body material: Anodized aluminum
3)Operating temperatureL-35-+45degrees
4)60degrees or other as customer' s special requirement
5)Input Voltage: AC100-240V/50~60Hz
6)Output Voltage: DC12-24V/350mA
7)Size: 102mm(diameter); Open hole caliber 86mm
8)Luminous flux: 560-640lm

Application for High power LED down light
1)Home /office lighting, display case lighting
2)Under cabinet lighting
3)Art lighting
4)Boat lighting, accent lighting
