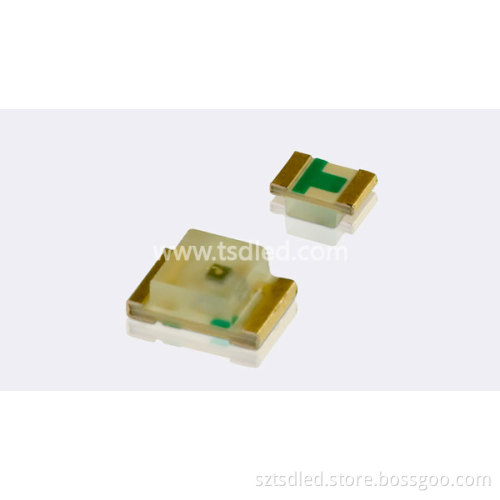

0805 SMD LED Lamp (TS-0805X-140)

Pb free product_RoHS compliant. Low power consumption, High efficiency. Wide viewing angle, High intensity. I. C. Compatible/low current requirement. Versatile mounting on p. C. Board or panel. General purpose leads

Notes of 0805 SMD LED
1. All dimensions are in millimeters.
2. Tolerance is ± 0.20mm unless otherwise noted.
3. Protruded resin under flange is 1.0mm max.
4. Lead spacing is measured where the leads emerge from the package.
5. Caution in ESD:
Static Electricity and surge damages the LED. It is recommend to use a wrist band or anti-electrostatic glove when handling the LED. All devices, equipment and machinery must be properly grounded.

Applications
1. Outdoor displays
2. Backlighting(LCD switches, keys, displays, illuminated advertising, general lighting)
3. Interior automotive lighting(e. G. Dashboard backlighting, etc. )
4. Marker lights (e. G. Steps, exit ways, etc. )
5. Signal and symbol luminaire
6. Scanners
