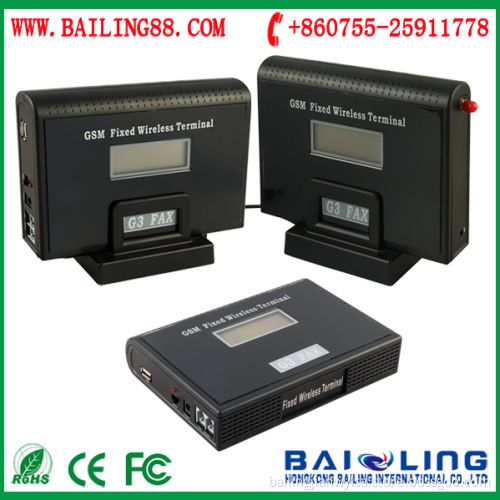

GSM Fax Gateway/FWT with LCD Display

GSM Fixed Wireless Terminal for send and receive Fax /making and answering call Fax Machine

Features:
1. Based on GSM 900/1800MHz or 850/1900MHz (Optional)
2. Support reverse polarity
3. Can connect to PBX
4 Support fax

Main Functions:
1. Making & answering calls after connecting to telephone set
2. Send/receive faxes through connecting to fax machine
3. Available to connect with telephone set, PBX, billing machine, etc
4. Available to connect with backup battery, and the stand-by time can reach 24 hours in case when the power is cut off.
5. Built-in PIN code protection featured with locking device/card/network
6. Caller ID
7. Optional to match with various high-gain antennas, featured with signal intensity indicator, Working status indicator, breakdown indicator, etc
8. Supports the functions of redialing and hands-free
9. Can proceed with setting up and modification of parameters through the phone set.
Technique Parameters:
Working Frequency
Rx (EGSM 900): 925~960MHz
Tx (EGSM 900): 800~915MHz
Rx (DCS 1800): 1805~1880MH
Tx (DCS 1800): 1710~1785MHz
Transmit power: Class 4 (2W) at EGSM 900
Class 1 (1W) at GSM 1800
SIM interface: Supported SIM card: 3V
Speech codec: Triple rate codec
Half Rate (ETS 06.20)
Full Rate (ETS 06.10)
Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)
