PSTN Voice Call GSM Fixed Wireless Terminal FWT Call Termination System

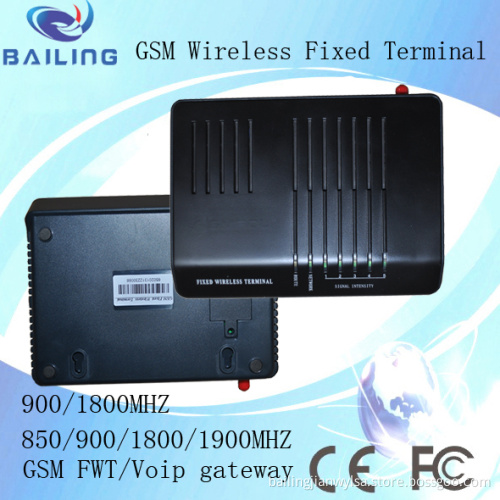

Mini box GSM FWT, fixed wireless terminal with PSTN for public phone1. General DescriptionGSM FWT is a GSM line to Analog Converter(single port, insert 1 SIM card only), the device can produce a FXS line to allow a regular phone to be connected and used just like a local landline(PSTN)expect your calls will go out the GSM network. The device can both receive and make calls.The main application is: Connecting the RJ11 FXS line with fixed phone for voice call, connect PBX for call extentions, connect billing system for publish phone use, connect VoIP gateway for VoIP call terminal, connect alarm system for security purpose, etc. It is not a VoIP gateway, nor a GSM+VoIP gateway. It is a GSM fixed wireless terminal that produces a Analog FXS phone line.Available:1)GSM 900/1800MHz dual band2)GSM 900/1800/1900MHz Tri band3)GSM 850/900/1800/1900MHz qual band, base on M10 module, can be used all over the world.2. Features1) It is a 1 channel GSM gateway with 2 RJ11 outputs for extensions.2) It can connect with fixed phone set, PBX, VoIP Gateway, Billing meter, etc3) Dialing tone frequency: 450MHz4) Base on industrial module M10/M355) Can adjust dial interval from 0.5sec to 9sec by setting up from telephone set6) Can adjust voice volume by setting up from telephone set7) SIM card supported(1.8V/3V)8) Caller ID display9) DTMF Dailing10) Bell signal11) Polarity reversal12) The RJ11 socket which connect the phone or billing system for metering purpose13) Antenna socket(SMA)14) IP presetting15) Working status and signal strength by LED indicator16) IMEI change(optional)17) USB interface for get online(optional)18) PIN Locked(option)3. Technical specificationsAir interface standard: GSM 850/1900MHz, 900/1800MHz phase 2+ full bandFrequency ranges:A)GSM 850 GSM 1900:I)Transmission: 869.2~893.8MHz I)Transmission: 1930~1990MHzII)Reception: 824.2~848.2MHz II)Reception: 1850~1910MHzB)GSM 900MHz: GSM 1800MHz:I)Transmission: 890~915MHz I)Transmission: 1710~1785MHzII) Reception: 935~960MHz II)Reception: 1805~1880MHzPhone interface: Supply RJ11 phone interfaceHanging voltage: 45VPicking off voltage: 30mA/41mADialing tone Frequency: 450MHzAntenna interface: Antenna amplifying>2, 5dBSensitivity: <-104dBmTransmitting power<3WColor: White/Black optionalAC-Adapter interface: Input: AC 110~240VAC 50~60MHzOutput: 12DC 1AAV adapter type: EU, US, AU, British can be optional4. Operation CicumstanceOperation temperature: -10C~60CStorage temperature: -20C~70COperation humidity: 45%~95%Atmosphere pressure: 86-106KpaEnvironment noise: <60dBTransmission Power: 2WSensitivity: <-104dBmAntenna Amplifying: >2.5dBDialing frequency: 450MHzHanging voltage: 45VPicking current: 30mA/41mA5. Package ListRemarkBailing GSM FWTAC adapter1PCSAntenna1PCSMagnetic Antenna with 2m cableUser Manual1PCSEnglishG. W: 0.6KG per unit. 20PCS/CTN, 15KG/CTN, CTN size: 55cm*34.5cm*32.5cmAlso we offer 16 port and 32 port FWT.Hong Kong Bailing International Co., Ltd, a Hi-Tech Enterprise dedicating to thewireless communication domain, engages in R&D, manufacture and sales ofwireless products.Bailing has been qualified with integrated quality management system and environment management system, and certified with ISO 9001 and ISO I4001certifications. Bailing can provide products compliant with RoHS standard.Under the principle of Professional Manufacture, Quality Assurance, Bailingmanufactures wireless communication products with reliable quality and reasonable price. Based on the strength of professional R&D, Bailing can providecustomized provide customized products and services to meet various applicationsfor customers' different requirements.
