RS232 TCP/IP Voice / Fax / SMS and Data Function GSM Modem

RS232 TCP/IP Voice / Fax / SMS and Data function GSM modem

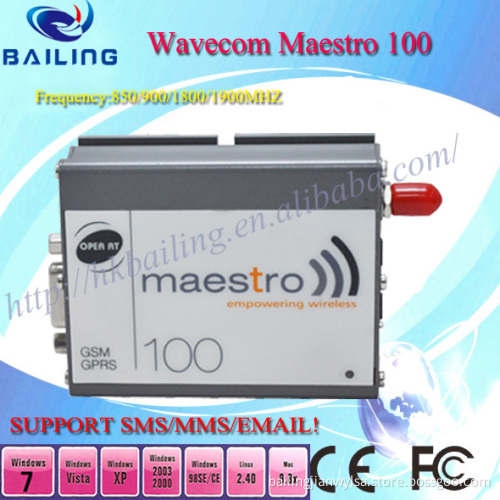

Maestro 100 is a ready-to-use GSM modem for voice, data, fax and SMS services. It also supports GPRS
Class 10 for hi-speed data transfer. Maestro 100 can be easily controlled by using AT command for all
Kinds of operations. With standard 9-pin RS232 port and telephone-like audio plug (via optional cable) the
Maestro 100 can be set up with minimal effort.

Main feature:


1. GSM and GPRS
2. Voice / Fax / SMS and Data
3. Quad Band 850 / 900 / 1800 1900 MHz
4. Accepts Standard SIM Card
5. Miniature size 88 x 60 x 26mm
6. Can Be Used On Standard GSM Network
7. RS232 Interface
8. One user programmable input/Output Port
9. GSM100T: TCP/IP stack available for data and internet
10. AT command set:
GSM 07.05 and 07.07 and WAVECOM
11. GPRS Class B Class 10:
36Kbps download / 24Kbps upload



Package
The Maestro 100 package should include the following:
1. Maestro 100 or 100T x 1
2. Power cord with fuse x 1
3. Safety note x 1
