OTDR Launch Cable Box

Fiber optic OTDR launch cable box
OTDR fiber optic launch cable box (500m, 1km, 2km)

HOT IN STOCK!

Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR
Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help
Minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in
Many different configurations and fiber lengths.



Black/Yellow Color
< 1dB @ 1310nm for 1000 meters Typical Loss
-40° To +55° C Operating temperature
0.75 kg (without fiber) Weight
SR Polypropylene Material
9.37" x 5.56" x 2.62" Length x Width x Height

Features:

Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Compound Latch for positive seal and easy opening with locking feature.
Non-metal construction will not dent, corrode, or conduce electricity
Water and dust prove allowing the unit to be taken into almost any environment
Case can house up to 2, 000 meters of fiber
Auto Purge Valve for changes in altitude and temperature

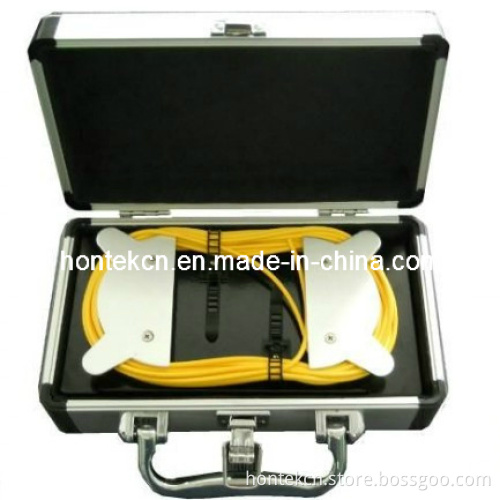

We also provide upgraded OTDR Launch Cable Box, Grade B!



Silver (Edged black) Color
< 1dB @ 1310nm for 1000 meters Typical Loss
-40° To +55° C Operating temperature
0.65 kg (without fiber) Weight
Aluminum Alloy Material
23(L) *18(W) *8(D) cm Length x Width x Height

Features:

Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
Compound Latch for positive seal and easy opening with locking feature.
Case can house up to 3, 500 meters of fiber.
Default setting: 3.0 meter long lead wire with 3.0mm cable on both sides.
Auto Purge Valve for changes in altitude and temperature
