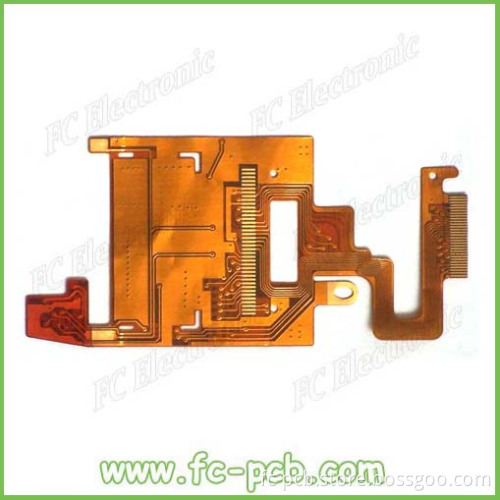

Flexible Circuit Board Manufacturer

Advantages:

We product all kinds of Flex pcb and Rigid flex pcb which are widely used in modern portable electronics and devices.such as Cell pone, key board, LCD module, Disk cable and etc.

1.With 12 years experience in circuit board,Printed Circuit Board field to serve your needs

2.Competitive circuit board, Printed Circuit Board price with high quality

3.Excellent service and prompt delivery

4.Our circuit board, Printed Circuit Board get ISO and UL Certificates and meet ROHS REACH standard 5. Professional & experienced engineers

Technical Data:

Layers:1-10layers
Min.Line Width:0.05mm
Min.Hole Size:0.15PTH
Min.PTH Hole Ring:0.45mm
Min.Gap between Cover layer and Pad:0.1mm
Min.Gap between Trace and Outline:0.2mm
Trace Width Tolerance:+/-0.03mm,W+/-30%
Outline Tolerance:+/-0.05mm L≤25mm
Hole Size Tolerance:+/-0.05mm
Stiffener and outline Tolerance:+/-0.25mm
Surface Treatment:ENIG,Gold Plating,HAL,Plating Pb-Sn




QUOTE REQUIREMENTS FOR PCB AND PCB ASSEMBLY:
- Gerber File and Bom List;
- Quantity;
- Technical requirements for quoting reference;
- Clear pictures of PCB or PCB Assembly sample if avaliable.
- Inspection method for PCB Assembly
