Remote Microphones for Icom Portable Radio Communication

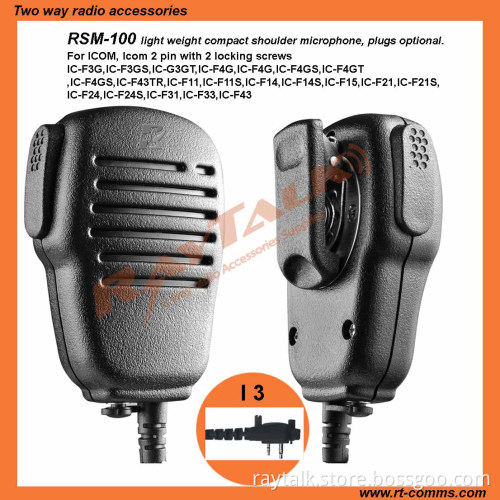

RSM-100 Remote Shoulder SPEAKER MICROPHONE for
Icom 2 pin with 2 locking screws
IC-F3G, IC-F3GS, IC-G3GT, IC-F4G, IC-F4G, IC-F4GS, IC-F4GT, IC-F4GS, IC-F43TR,
IC-F11, IC-F11S, IC-F14, IC-F14S, IC-F15, IC-F21, IC-F21S, IC-F24, IC-F24S, IC-F31, IC-F33,
IC-F43

Robust, slim-line, lightweight traditional lapel worn speaker/microphone.
High quality audio reproduction with the option to fit an earphone via the 3.5mm socket.
Kevlar lined for added strength and longevity
Water resistant with a 8 way robust metal clothing clip and extremely durable coil cable.

Microphone Specifications
Dimension: Ø 9.7 X 6.5mm
Sensitivity: -40 ± 3dB
Direction: Omnidirectional
Output Impedance: 2.2K Ω
Current Consumption: 500A
Working Voltage: 1.5V
Audio Response: 50Hz 10kHz

Speaker Specifications
Dimension: Ø 36mm
Impedance: 8 Ω ± 15%
Output Sound Pressure Level: 80± 3dB
Power Rating: Normal. 05W
Maximum 1W
Frequency Range: 280Hz-6kHz average
SPL-10dB

Cable Specifications
Cable Diameter: Ø 3.8mm
Cable Length: 45cm 1.5m
Colour: Black
Material: Thermoplastic polyurethanes

Optional Extras
Receive only earpiece to be plugged into 3.5mm socket on the microphone

Optional connectors:
For Motorola/Kenwood/Icom/HYT/Vertex//Sepura/Tait, etc
