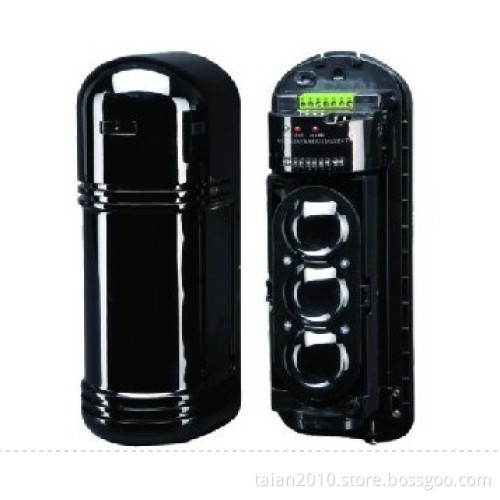

IR Beam (ABE-100/150/200/250)

1. Anti strong light up to 50000LUX, built-in auto adjustment filtering system, avoid the interference strong light and car spotlight.
2. Unique optical design: The optical beams could penetrate through multilayer glass, strong resistance to external interference.
3. Integrative structure for waterproof, dustproof and mothproof
4. Adopted the large caliber non-sphere three focus coaxial optic lens, and fresnel lens optical.
5. Strong function of RFI & EMI.
6. Using the multilevel LED, solve the trouble of interference by the


ModelABE-50ABE-100ABE-150ABE-200ABE-250
Alarm distanceindoor50m100m150m200m250m
Outdoor 150m300m450m600m750m
Maximum distance600m1200m1800m2400m3000m
Number of beams3 beams
Way of detectiondetect when all 3 beams are cut
Light sourceIR LED
Detecting speed 50 -700 msec
Alarm outputrelay port output, port capacity: ACDC30V0.5Amax
Power supplyDC12 -18 V
Current40mAmax 65mAmax
Operating temperature- 25 -55c
Tamper outputDC30V0.5 Amax.
Horizontal angle180° ± 90 °
Vertical angel20° ± 10 °
MaterialPC& ABS
Weight600g/pc for sender or receiver each
