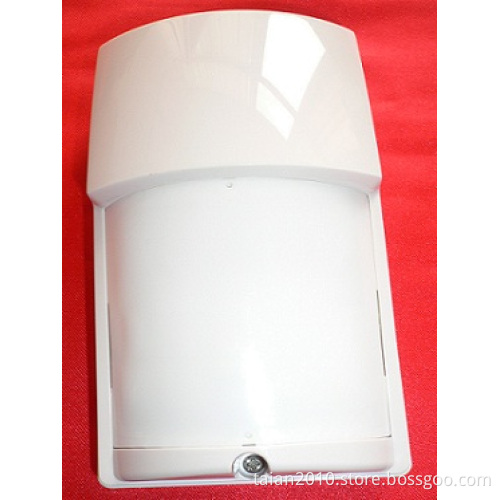

Selectable Outdoor Passive Infrared Motion Detector (LX-402)
- Payment Type:
- T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T, Paypal, Western Union |
Product Description
Product Description
Product Description
Description:
The LX Series is robust, weatherproof and specifically designed for short-range outdoor Event-Driven CCTV applications.
The small size and attractive finish ensures that it will blend into even the most sensitive areas. Wide angle and long-range options offer flexibility and advanced features such as sensitivity and range adjustment. A built-in light sensor provides day and night modes and further adds to the flexibility of the LX Series.
An ingenious mirror assembly allows the sensor to provide a pet alley configuration, while the inclusion of Optex patented Double Conductive Shielding ensures the sensor is highly resistant to interference from foreign light sources such as the sun and car headlights.
Features
1. Patented Double Conductive Shielding
2. Selectable detection patterns (pet alley or multi level)
3. Area masking strips
4. Sensitivity selection switch (high, mid and low)
5. Selectable pulse count (test or 2)
6. Day & night modes
7. LX-402 C standard model 12m x 15m
The LX Series is robust, weatherproof and specifically designed for short-range outdoor Event-Driven CCTV applications.
The small size and attractive finish ensures that it will blend into even the most sensitive areas. Wide angle and long-range options offer flexibility and advanced features such as sensitivity and range adjustment. A built-in light sensor provides day and night modes and further adds to the flexibility of the LX Series.
An ingenious mirror assembly allows the sensor to provide a pet alley configuration, while the inclusion of Optex patented Double Conductive Shielding ensures the sensor is highly resistant to interference from foreign light sources such as the sun and car headlights.
Features
1. Patented Double Conductive Shielding
2. Selectable detection patterns (pet alley or multi level)
3. Area masking strips
4. Sensitivity selection switch (high, mid and low)
5. Selectable pulse count (test or 2)
6. Day & night modes
7. LX-402 C standard model 12m x 15m
| Name: | Selectable Outdoor passive infrared motion detector(LX-402) |
| Model: | OPTEX LX-402 |
| Detection model: | passive infrared |
| Detection area: | 40ft*50ft(12m*15m)120°wide |
| Coverage: | multi-level area: 40zones |
| pet alley area:18zones | |
| Mounting height: | multi-level area: 8.3ft(2.5m)max |
| pet alley area:4-5ft(1.2-1.5m) | |
| Detection speed | 1-3.3ft/sec.(0.3-1.0m/sec.) |
| Sensitivity adjustment | selectable 3 position(H,M,L) |
| LED indicator: | LED lights during detection |
| Alarm period | 2±1sec.(delay timer) |
| Alarm output | NC.NO.28VDC 0.2A max |
| Tamper switch | opens when cover removed |
| pulse count | 2(20±5sec.)or TEST(1pulse) |
| Day/night mode adjustment | approx. 10 to 100,000 lux |
| Warm up period | approx.60 sec. |
| Power input | 10.8-13.2VDC |
| Current draw | 25mA max |
| Mounting | wall(indoor/outdoor) |
| Operating temperature: | -20°C to +50°C |
| Environment humidity | 95%max |
| Weight | 6.0oz(170g) |
| IP rating | IP54 |
| Accessory |
Masking strips,mounting screw,sponge |
