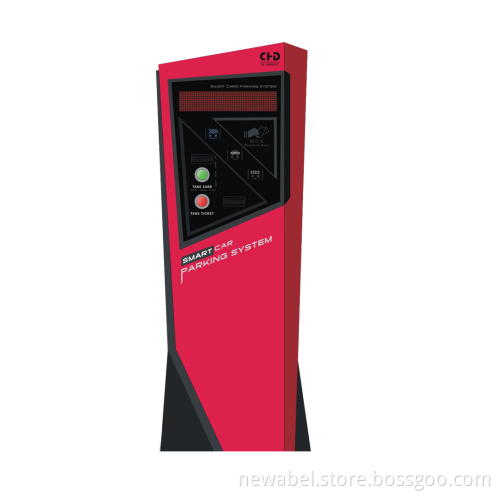

Smart Car Parking System-Entrance Control Terminal

Smart Car Parking System-Entrance Control Terminal

New Industrial design, elegant appearance;

CPU: 405MHz, ARM9, main processor(S3C2440), linux system, SQLITE data based

Communication mode: 100M TCP/IP

ESD: Contact discharge± 6kV, air discharge: ± 8kV

Rapid pulse control rate: ± 2KV, 5KHz, power supply and all input&output interface.

Multiple compatible interfaces: Configurable freely, support external charges display, full lots display, camera, RF card reader, voice speaker etc...

Charging rule: It can be set up freely, which could meet different customers' requirements.

Lots Available Display: It supports lots available function, real-time counting for parking spaces, when there is 0 for parking spaces, it forbids vechicle entering until there is vacant space.

Multipoint charge: Modularized management, it supports sentry box charge and centre charge, and can be set up freely according to the needs.

Image comparion and car plate automatic recognition: Modularized, it supports "image comparision at entrance&exit to open barrier gate" or "long-term user car plate automatic recogniction to open barrier gate".

Parking guidance: Modularized management, infrared detector detects automatically available lots, monitoring terminal transmits the data to the parking LED displays showing available lots.
