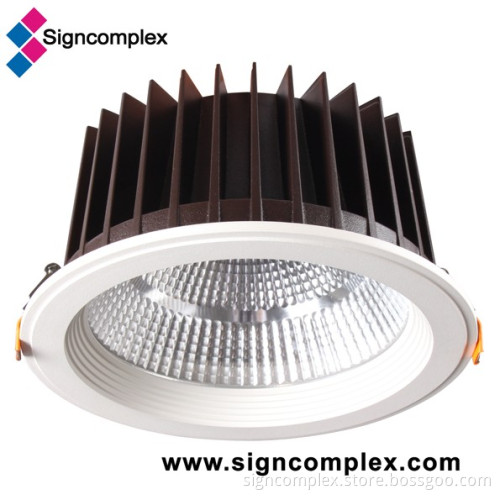

35W Ivar COB LED Downlight

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, Guangdong
Payment Type:	T/T

Product Description

Features:
*Use die-casting magnesium alloy to make the main body.
*Use PMMA as the material of panel.
*Unique and delicate looking design.
*Excellent heat dissipation performance.
*The driver and main body use separation design which ensure the long life of both parts.
*Energy saving LED driver.
*Can replace traditional downlight.

Dimenions(unit:mm/inch):
35W Ivar COB LED Downlight

Application:

Installation drawing:

Other cautions:
Power must be cut off before installation, fix it on the position of installation holes, connection of the power supply must be sealed.
1.Please read the specification first, to make sure the service environment matches the condition in the specification before using.
2.Please confirm the applicable power supply before using.
3.Make sure the switch of product is off before connect to the power supply to prevent electric shock.
4.Operation against rules may damage your property even harm to your personal safety.
5.Preliminarily estimate required quantity of LED lights, then according to the power rating of single flood light to figure out the
total power and design power supply plan.
6.Dangerous high voltage, Non-professionals are not allowed to maintain the products.
If the exterior flexible cable or wire is damaged, it must exchange by the supplier, its agent or other similar qualified personnels
to avoid dangers

Model Number	Color	LED Type	Light Output	CCT	CRI	Beam Angle (degrees)	Power (W)	Max.Current (Amps)	Voltage
DLD08-035-AW-W-01	White	Epistar COB LED	2740	6000-6300	>80	55°	35W	380	100-240V AC 50/60 Hz
DLD08-035-AW-WW-01	Warm White		2340	2900-3100	>80
DLD08-035-AW-NW-01	Natural White		2370	3900-4100	>80
